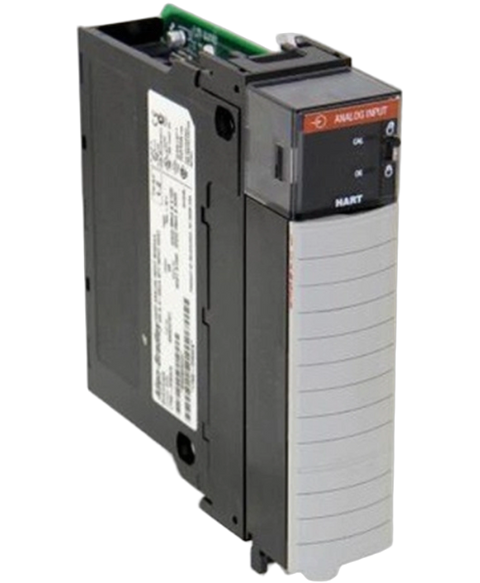

Allen Bradley 1756-IF16IH
The Allen-Bradley ControlLogix 1756-IF16IH is a HART Interface Module with 16 Inputs, 16-21 bits Resolution, 5.30 Watts, and 250 Ohms (+,- 5 Ohms).
This Allen Bradley 1756-IF16IH is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input > Controllogix range and is referenced internally as PartLogic SKU PL26805657058.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-IF16IH |
| UPC | 887172321641 |
| Weight | 0.63 lbs (0.28 kg) |
| Module Type | HART Interface Module |
| Inputs | 16 |
| Input Current Range | 0-20 Miliamperes, 4-20 Miliamperes |
| Backplane Current | 225 Miliamperes at 5.1 Volts DC, 200 Miliamperes at 24 Volts DC |
| Inrush Current | 400 Miliamperes at 5.1 Volts DC, 450 Miliamperes at 24 Volts DC |
| Power Dissipation | 5.30 Watts |
| Isolation Voltage | 250 Volts Continuous |
| Input Overvoltage Protection | 28.8 Volts DC |
| Input Impedance | 250 Ohms (+/- 5 Ohms) |
| Resolution | 16-21 bits |
| Slot Width | 1 |
| Enclosure Type | None (Open-Style) |
| Operating Temperature | 32-140 F (0-60 C) |
| Brand | Allen Bradley |
