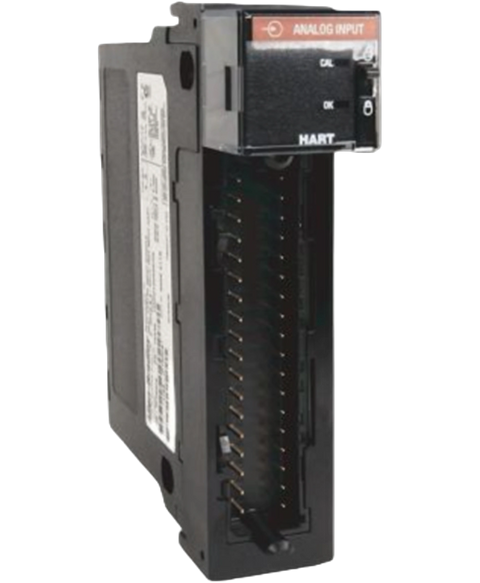

Allen Bradley 1756-IF16
The Allen-Bradley 1756-IF16 is a ControlLogix module that features Sixteen (16) single ended or Eight (8) Differential or Four (4) differential high-speed analog input channels. This module supports input signal ranges of ±10V, 0-10V, 0-5V and 0-20 mA with resolution of 320 µV,count (15 bits + sign bipolar) @ ±10.25V; 160 µV,count (16 bits) @ 0-10.25V; 80 µV,count (16 bits) @ 0-5.125V and 0.32 µA,count (16 bits) @ 0-20.5 mA. This module is used with 1756-TBCH or 1756-TBS6H Removable Terminal Block (RTB).
This Allen Bradley 1756-IF16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input > Controllogix range and is referenced internally as PartLogic SKU PL26805675819.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-IF16 |
| UPC | 612598171781 |
| Weight | 0.50 lbs (0.23 kg) |
| Module Type | Analog Input module |
| No. of Inputs | 16 single ended, 8 differential or 4 differential (high speed) |
| Analog signals | ±10V, 0-10V, 0-5V and 0-20 mA |
| Resolution | 320 µV/count (15 bits + sign bipolar) @ ±10.25V; 160 µV/count (16 bits) @ 0…10.25V: 80 µV/count (16 bits) @ 0…5.125V; 0.32 µA/count (16 bits) @ 0…20.5 mA |
| Settling time | \u003C80 ms to 5% of full-scale. |
| Scan Time | 16 pt single-ended: 16-488 ms; 8 pt differential: 8-244 ms and 4 pt high-speed differential: 5-122 ms |
| Backplane Current, 5.1VDC | 150 mA |
| Backplane Current, 24VDC | 65 mA |
| Total Backplane power | 2.33 W |
| Removable Terminal Block (RTB) | 1756-TBCH 1756-TBS6H |
| Module conversion method | Sigma-Delta |
| Data format | Integer mode (left justified, 2 s complement) IEEE 32-bit floating point |
| Inputs | 16 single, 8 differential, 4 highspeed differential |
| Input Resolution | (+/-) 10.25 Volts, 0 to 5.125 Volts, 0 to 10.25 Volts |
| Backplane Current (5Volts) | 150 milliamps |
| Backplane Current (24Volts) | 65 milliamps |
| Power Dissipation (Max) | 2.3 Watts (Voltage), 3.9 Watts (Current) |
| Removeable Terminal Blocks | 1756-TBCH, 1756-TBS6H |
| Maximum Input Current, Off-State | 1.5 milliamperes |
| Power Consumption | 2.3 Watts |
| Brand | Allen Bradley |
