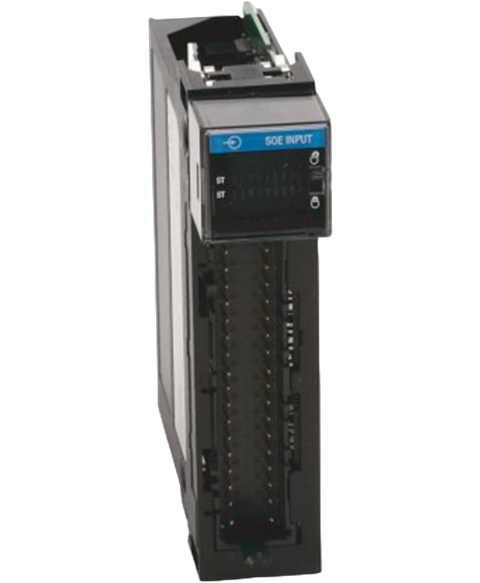

Allen Bradley 1756-IB16ISOE
Isolated input module, controllogix, 24VDC (10-55VDC range), 16 inputs, for sub-millisecond time-stamping on a per point basis, 0 to 60 degree c operating temperature
This Allen Bradley 1756-IB16ISOE is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input > Controllogix range and is referenced internally as PartLogic SKU PL26946646345.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-IB16ISOE |
| UPC | 612598299669 |
| Weight | 0.44 lbs (0.20 kg) |
| Module Type | Digital DC Isolated Input Sequence of Events |
| Inputs | 16 Individually Isolated; Sequence of Events |
| Input Voltage | 24-48 Volts DC Sink-Source |
| Operating Voltage Range | 10-55 Volts DC |
| Input Delay Time | 50 microseconds plus selected filter time |
| Minimum Operating Current | 5.5 milliamperes at 55 Volts DC |
| Maximum Operating Current | 2 milliamperes at 10 Volts DC |
| Maximum Input Current, Off-State | 1.5 milliamperes |
| Power Dissipation (Max) | 5.5 Watts at 60 degrees Celsius |
| Backplane Current at 5 Volts | 275 milliamperes |
| Backplane Current at 24 Volts | 2 milliamperes |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Brand | Allen Bradley |
