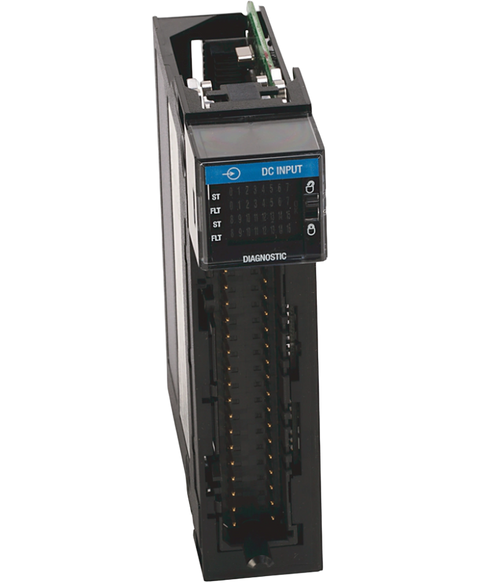

Allen Bradley 1756-IB16D
Diagnostic input module, controllogix, 24VDC (10-30VDC range), 16 inputs, digital, 0 to 60 degree c operating temperature
This Allen Bradley 1756-IB16D is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input > Controllogix range and is referenced internally as PartLogic SKU PL26805672903.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-IB16D |
| UPC | 612598164493 |
| Weight | 0.38 lbs (0.17 kg) |
| Module Type | Digital DC Input Module |
| Inputs | 16 Diagnostic Inputs |
| Input Voltage | 12-24 Volts DC Sink |
| Operating Voltage Range | 10-30 Volts DC |
| Input Delay Time | 4 milliseconds plus selected filter time |
| Minimum Operating Current | 2 milliamperes at 10 Volts DC |
| Maximum Operating Current | 13 milliamperes at 30 Volts DC |
| Maximum Input Current, Off-State | 1.5 milliamperes per point |
| Power Dissipation (Max) | 5.8 Watts at 60 degrees Celsius |
| Backplane Current at 5 Volts | 150 milliamperes |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Brand | Allen Bradley |
