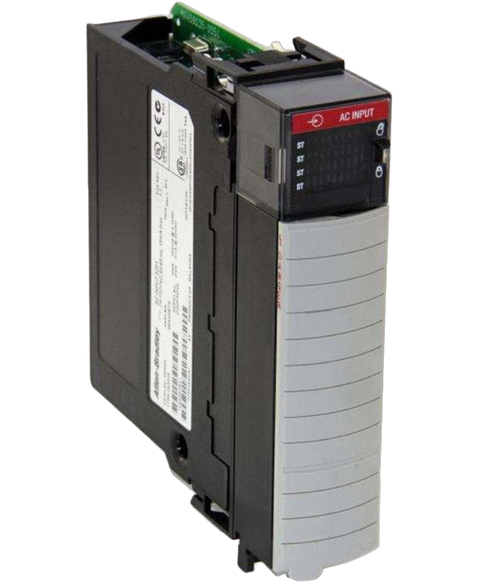

Allen Bradley 1756-IA32
The Allen-Bradley 1756-IA32 is a ControlLogix Discrete input module. This is an AC input module which features Thirty-Two (32) input channels, accepting signal voltage range of 74-132VAC in Two (2) groups of Sixteen (16) channels each group. It may be installed to a 1756 local or distributed I,O chassis.
This Allen Bradley 1756-IA32 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input > Controllogix range and is referenced internally as PartLogic SKU PL26801461928.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-IA32 |
| UPC | 612598171286 |
| Weight | 0.50 lbs (0.23 kg) |
| Backplane Current at 24 Volts | 2 milliamperes |
| Power Dissipation (Max) | 6.1 W @ 60 °C (140 °F) |
| Operating Voltage Range | 74-132 VAC |
| Input Voltage | 120 VAC Volts AC |
| Module Type | Digital DC Input Module |
| No. of Inputs | Thirty-Two (32) Inputs |
| Module Keying | Electronic |
| Input Delay Time, OFF to ON | Hardware delay: 1.5 ms nom/10 ms max + filter time |
| Input Delay Time, ON to OFF | Hardware delay: 1 ms nom/8 ms max + filter time |
| Thermal Dissipation | 20.8 BTU/hr @ 60 °C (140 °F) |
| Removable Terminal Block(s) | 1756-TBCH; 1756-TBSH |
| Inputs | 32 |
| Input Delay Time | Programmable 9 or 18 milliseconds |
| Minimum Operating Current | 5 milliamperes at 74 Volts AC |
| Maximum Operating Current | 10 milliamperes at 132 Volts AC |
| Maximum Input Current, Off-State | 2.5 milliamperes |
| Backplane Current at 5 Volts | 165 milliamperes |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Brand | Allen Bradley |
