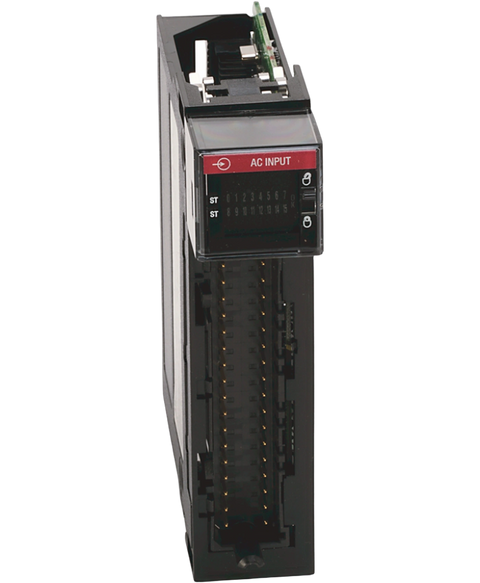

Allen Bradley 1756-IA16I
The 1756-IA16I is a ControlLogix Discrete input module which operate at a voltage category of 79 to 132V AC at a frequency of 47 to 63 Hz. This module has Sixteen (16) individually isolated channels. This module is directly installed to a 1756 local or remote chassis.
This Allen Bradley 1756-IA16I is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input > Controllogix range and is referenced internally as PartLogic SKU PL26805544243.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-IA16I |
| UPC | 612598164479 |
| Weight | 0.50 lbs (0.23 kg) |
| Inputs | 16 Individually Isolated |
| Module Type | Digital AC Input Module |
| No. of Inputs | Sixteen (16) Individually Isolated |
| Input Voltage | 120 Volts AC |
| Operating Voltage Range | 79-132 Volts AC |
| Module Keying | Electronic |
| Input Delay Time | Programmable 9 or 18 milliseconds |
| Minimum Operating Current | 5 milliamperes at 79 Volts AC, 47-63 Hertz |
| Maximum Operating Current | 15 milliamperes at 132 Volts AC, 47-63 Hertz |
| Maximum Input Current, Off-State | 2.5 milliamperes |
| Power Dissipation (Max) | 4.9 Watts at 60 degrees Celsius |
| Backplane Current at 5 Volts | 125 milliamperes |
| Backplane Current at 24 Volts | 2 milliamperes |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Brand | Allen Bradley |
