Allen Bradley 1756-HYD02

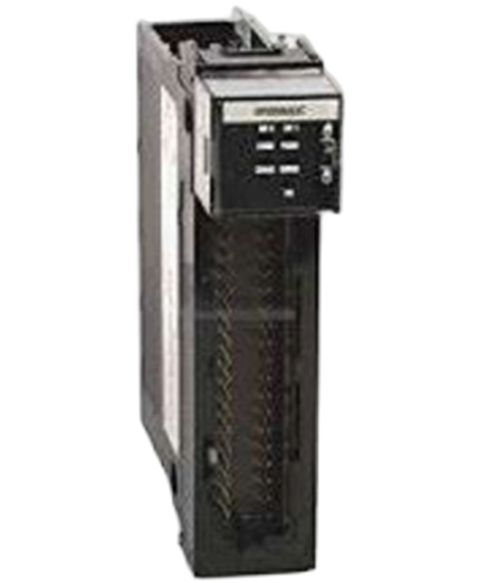

The Allen-Bradley 1756-HYD02 is a ControlLogix Hydraulic Servo Module. This module has two (2) axes and supports Proportional, Integral and Differential (PID) with feed-forwards and directional scaling servo loop with gain resolution of 32-bit floating point. It has an absolute position range of 230,000 LDT counts with selectable rate of 500 Hertz to 4 kiloHertz.
This Allen Bradley 1756-HYD02 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Specialty > Controllogix range and is referenced internally as PartLogic SKU PL26805610214.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-HYD02 |
| UPC | 612598300518 |
| Weight | 0.50 lbs (0.23 kg) |
| Module Type | Hydaulic Servo Module |
| Series | 1756 ControlLogix |
| Servo Loop | Proportional, integral and differential (PID) with Feed- Forwards and Directional scaling |
| Gain Resolution | 32- bit floating point |
| Absolute Position range | 230,000 LDT counts |
| Rate | 500Hz to 4kHz (Selectable) |
| LDT Input | PWM, Start/Stop rising or falling edge |
| Registration input | Optically isolated, current sinking input |
| Analog output | ±10V dc |
| Analog output resolution | 16 bits |
| Discrete outputs | Solid-state isolated relay contacts |
| Discrete output operating voltage | 24VDC, Nominal. |
| Axes per Module | 2 |
| Axes per Controller | 32 |
| Backplane Current (5Volts) | 700 milliamps |
| Backplane Current (24Volts) | 2.5 milliamps |
| Power Dissipation | 5.5 Watts |
| Removeable Terminal Blocks | 1756-TBCH, 1756-TBS6H |
| Count Range | 0-16, 214, 777 |
| Location | Chassis (Any Slot) |
| Slot Width | 1 |
| Brand | Allen Bradley |
