Allen Bradley 1756-HSC

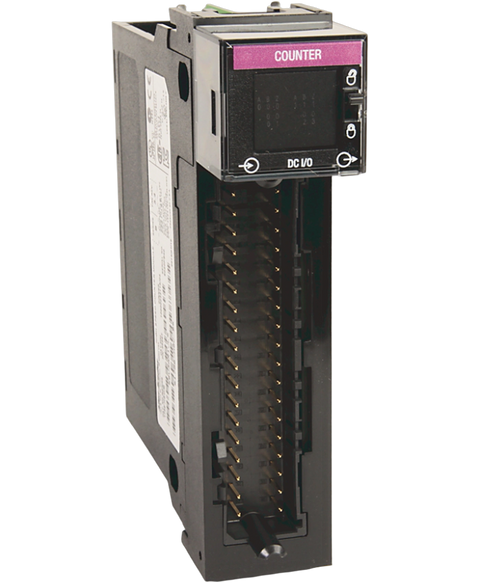

The 1756-HSC is a High-Speed Counter module is used for interfacing instruments such as encoders, totalizers and other instruments for motion and position control applications and metering systems. It has Two (2) Counters with each Counter capable of Three (3) input in A, B and Z for Gate , Reset signals. This module is installed to a ControlLogix chassis only.
This Allen Bradley 1756-HSC is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Specialty > Controllogix range and is referenced internally as PartLogic SKU PL26805285937.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-HSC |
| UPC | 612598186280 |
| Weight | 0.50 lbs (0.23 kg) |
| Inputs | 3 per Counter |
| Module Type | High Speed Counter Module |
| Outputs | 4-Point |
| Signal Frequencies | 1 MHz in counter modes (A input); 500 KHz in rate measurement mode (A input); 250 KHz in encoder mode (A/B inputs, X1 or X4); 50Hz with debounce filter enabled |
| Operation Modes | Counter, Rate Measurement, Encoder, Debounce Filter |
| Backplane Current (5Volts) | 300 milliamps |
| Backplane Current (24 Volts) | 3 milliamps |
| Power Dissipation (Max) | 5.6 Watts at 60 Celsius |
| Count Range | 0-16, 214, 777 |
| Removeable Terminal Blocks | 1756-TBCH, 1756-TBS6H |
| Location | Chassis (Any Slot) |
| Slot Width | 1 |
| Brand | Allen Bradley |
