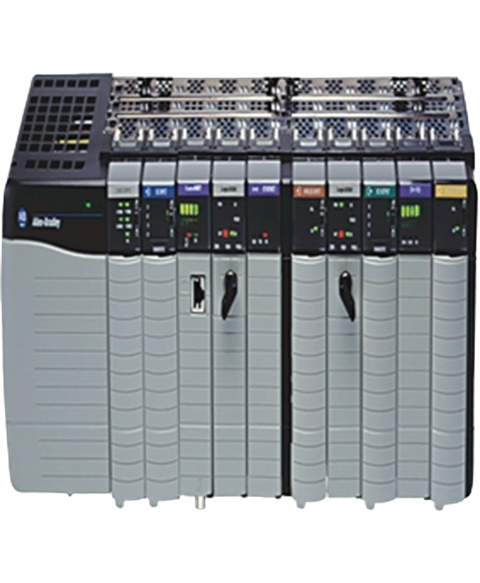

Allen Bradley 1756-A10
The Allen-Bradley 1756-A10 is ControlLogix chassis. It has Ten (10) slots, providing backplane connections and housing to ControlLogix modules. This chassis has a maximum backplane current of 1.5 A @ 1.2VDC; 4A,4A @ 3.3 VDC; 15 A,6 A @ 5.1 VDC and 2.8 A,2.8 A @ 24VDC.
This Allen Bradley 1756-A10 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Chassis > Controllogix range and is referenced internally as PartLogic SKU PL26805307121.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | ControlLogix |
| Part Number | 1756-A10 |
| UPC | 612598129270 |
| Weight | 2.63 lbs (1.19 kg) |
| Mounting | Panel Mount |
| Module Type | Chassis |
| No. of slots | Ten (10) slots |
| Backplane Current, Chassis/Slot @ 1.2VDC | 1.5 A |
| Backplane Current, Chassis/Slot @ 3.3VDC | 4A/4 A |
| Backplane Current, Chassis/Slot @ 5.1VDC | 15 A/6 A |
| Backplane Current, Chassis/Slot @ 24VDC | 2.8 A/2.8 A |
| Orientation | Horizontal |
| No. of mounting tabs | Six (6) |
| Operating Temperature, Series B | 0°C to +60°C (+32°F to +140°F) |
| Operating Temperature, Series C | -25…+60 °C (-13…+140 °F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Cabinet size (HxWxD), min | 50.8 x 76.2 x 20.3 cm (20 x 30 x 8 in.) |
| Power dissipation, max | 5 W |
| Slots | 10 |
| Enclosure | Open |
| Backplane Current (5 Volts DC) | 10 amps |
| Backplane Current (24 Volts DC) | 2.8 Amps |
| UNSPSC | 32151704 |
| Brand | Allen Bradley |
