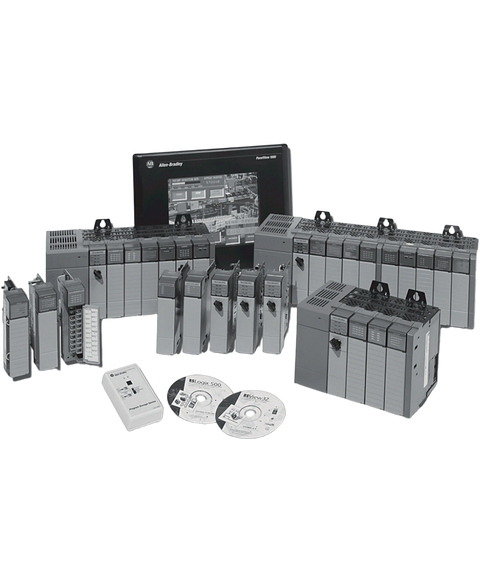

Allen Bradley 1747-SDN
The Allen-Bradley 1747-SDN is a SLC 500 DeviceNet Scanner Module. This module is communicates with DeviceNet adapter modules connected to the DeviceNet network. It is compatible for use with SLC 5,02 controllers or later. It is a single-slot module that supports operation in slave mode and delivers message in poll, Strobe, Change-of-State, Cyclic I,O and Pass-through configuration. It has a backplane current consumption of 5V DC, 500 mA
This Allen Bradley 1747-SDN is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Communication > Slc 500 range and is referenced internally as PartLogic SKU PL26805307733.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1747-SDN |
| GTIN | 10612598164858 |
| Weight | 0.38 lbs (0.17 kg) |
| Operating Temperature | 0 to 55 C (32 to 131 F) |
| Module Width | Single Slot |
| Compatible controllers | SLC 5/02 or later |
| Pass through | Supported |
| Communication Port | One (1) DeviceNet |
| Data Transfer speed | 125Kbps |
| Linear Plug | 1787-PLUG10R |
| Indicators | Mod/Net Status - red/grn; I/O Status - red/grn |
| Mounting | DIN Rail; Panel Mounting |
| Storage Temperature | -40 to 85 C (-40 to 185 F) |
| Vibration | Tested 5 g @ 10-500Hz per IEC 68-2-6 |
| Operating Shock | 30 g peak acceleration, 11(+1)ms pulse width |
| Module Type | DeviceNet Scanner Module |
| Scan I/O | Yes |
| Compatible Processors | SLC 5/02, 5/03, 5/04, 5/05 |
| Backplane Current (5 Volts) | 500 milliamps |
| Backplane Current (24 Volts) | 90 milliamps |
| Chassis Module Slots | 30 |
| Communication | Ethernet, RS-232 |
| Backup Memory | Flash |
| UPC | 10612598164858 |
| Brand | Allen Bradley |
