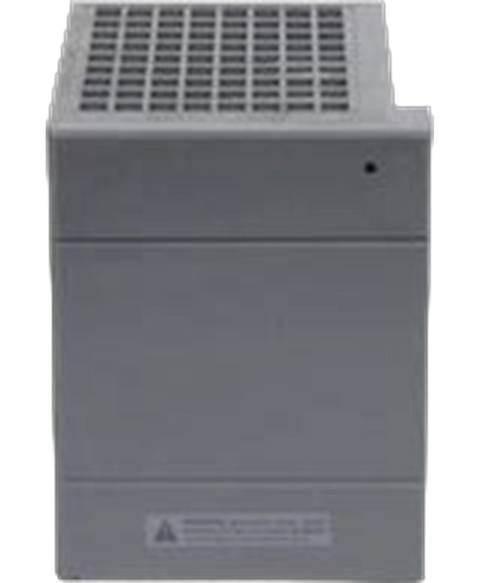

Allen Bradley 1746-P4
The Allen-Bradley 1746-P4 is a SLC 500 Power Supply. This Power Supply has a nominal Input Voltage of 85 - 132, 170 - 250VAC. It has an internal Current capacity of 3.6 A at 5V dc 0.87 A at 24V dc. It provides a 24VDC voltage output with built-in fuse protection.
This Allen Bradley 1746-P4 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supply > Slc 500 range and is referenced internally as PartLogic SKU PL26801461849.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-P4 |
| GTIN | 10662468409589 |
| Weight | 2.00 lbs (0.91 kg) |
| Module Type | Power Supply |
| Input Voltage | 120 to 220 Volts AC |
| Input Power | 92 Watts |
| Typical line power requirement | 180VA |
| Inrush Current | 45 Amps |
| Backplane Current (5 Volts) | 10 Amps |
| Internal Current Capacity | 10.0 A at 5V dc 2.88 A at 24V dc |
| Output Voltage Range | 18 to 30 Volts DC |
| CPU Hold up time | 20 ms (full load) 3000 ms (no load) |
| Backplane Current (24 Volts) | 0.46 Amps |
| Frequency | 47 to 63 Hertz |
| Location | 1746 Chassis |
| UPC | 10662468409589 |
| Operating Temperature | 0 to 60 Celsius |
| UNSPSC | 32151706 |
| Fuse Protection | 1746-F1 or equivalent |
| Brand | Allen Bradley |
