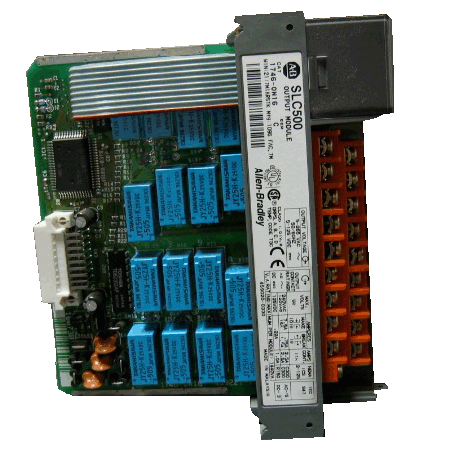

Allen Bradley 1746-OW16
The Allen-Bradley 1746-OW16 is a SLC 500 Digital Contact Output Module. This Digital Contact Output Module has Sixteen (16) Normally Open (N.O.) Relay channels with operating Voltage of 5-265 Volt AC or 5-125 Volts DC. O. It has Two (2) output groups with Eight (8) channels per Common.
This Allen Bradley 1746-OW16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output > Slc 500 relay output modules range and is referenced internally as PartLogic SKU PL26801425224.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-OW16 |
| UPC | 662468067072 |
| Weight | 1.00 lbs (0.45 kg) |
| Module Type | Digital Contact Output Module |
| Outputs | 16 |
| Operating Voltage | 5-265 Volt AC or 5-125 Volts DC |
| No. of groups | 2 |
| Points per group | 8 |
| Output Types | N.O. Relay Contact |
| Applications | Relay Contact Outputs (8 per Common) |
| Current/Output (120 VAC) | 1.5 amps |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| Current/Output (24VDC) | 1.2 amps |
| Backplane Current | 170-180 milliamps |
| UNSPSC | 32151705 |
| Signal delay, max resistive load | On = 10.0 ms Off = 10.0 ms |
| Brand | Allen Bradley |
