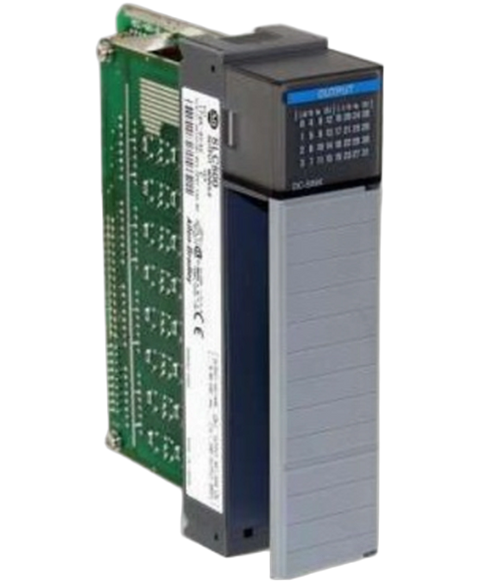

Allen Bradley 1746-OV32
The Allen-Bradley 1746-OV32 is an SLC500 module that features thirty-Two (32) Discrete sinking output channels. It has Two (2) groups of Sixteen (16) output channels each and delivers nominal signal voltage of 24VDC and voltage range of 5-50VDC. It is compatible for installation with any SLC500 chassis.
This Allen Bradley 1746-OV32 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output > Slc 500 range and is referenced internally as PartLogic SKU PL27209495310.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-OV32 |
| GTIN | 10662468092910 |
| Weight | 0.38 lbs (0.17 kg) |
| Module Type | Digital DC Sinking output |
| No. of output | 32; Sinking output |
| Nominal Output Voltage | 24 VDC |
| Output Voltage range | 5-50 VDC |
| Output Current at 30 Deg. C. | 0.50A |
| Output Current at 60 Deg. C. | 0.25A |
| Signal Delay, ON transition | 0.1 ms |
| Signal Delay, OFF Transition | 1.0 ms |
| Backplane Current | 0.190A |
| Thermal Dissipation per channel | 0.172 Watts |
| Thermal Dissipation, min. | 0.95 Watts |
| Thermal Dissipation, total. | 6.45 Watts |
| Electronic Protection | No |
| Voltage Range | 5-50 Volts DC |
| Outputs | 32 |
| Current/Outputs | 0.5-0.25 amps |
| Current/Module | 8 amps |
| Backplane Current (5 Volts) | 190 milliamps |
| Applications | High Current |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| UPC | 10662468092910 |
| Brand | Allen Bradley |
