Allen Bradley 1746-OV16

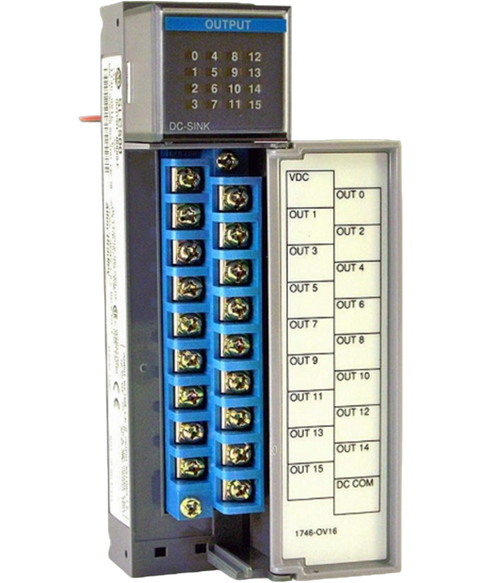

The Allen-Bradley 1746-OV16 is a SLC 500 discrete sinking output module. This module has Sixteen (16) channels that provides a nominal output voltage of 24VDC and 10-50VDC output voltage range. It has One (1) group of 16 channels with backplane current draw of 0.270 A. It has a continuous output current per point of 0.50 A at 30 °C (86 °F) and 0.25 A at 60 °C (140 °F).
This Allen Bradley 1746-OV16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output > Slc 500 range and is referenced internally as PartLogic SKU PL26801377890.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-OV16 |
| GTIN | 10662468067031 |
| Weight | 0.69 lbs (0.31 kg) |
| Module Type | Discrete output module |
| Nom Input Voltage | 24VDC |
| Input Voltage Range | 10-50 VDC |
| Wiring configuration | Sink wiring configuration |
| Backplane current consumption | 0.270 A |
| Signal delay, max. resistive load | On = 0.1 ms; Off = 1.0 ms |
| Continuous current per point | 0.50 A at 30 °C (86 °F); 0.25 A at 60 °C (140 °F |
| Continuous current per module | 8.0 A at 30 °C (86 °F); 4.0 A at 60 °C (140 °F) |
| On-state voltage drop, max | 1.2V at 0.5 A |
| Surge current per point | 3.0 A for 10 ms |
| Voltage Range | 10-50 Volts DC Sink |
| Outputs | 16 |
| Current/Output | 0.5 or 0.25 amps |
| Current/Module | 8 or 4 amps |
| Backplane Current (5 Volts) | 270 milliamps |
| Applications | High Current |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| Brand | Allen Bradley |
