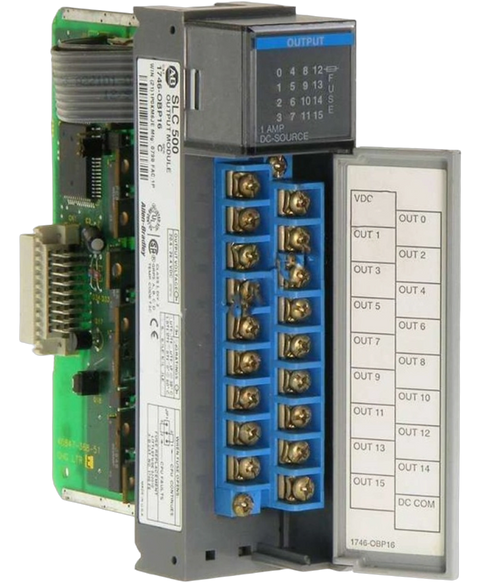

Allen Bradley 1746-OBP16
The Allen-Bradley 1746-OBP16 is a SLC 500 Digital DC Output Module. This Digital DC Output Module has Sixteen (16) channels with an output Voltage Range of 20.4-26.4 Volts DC in Sourcing configuration. It may be installed in a SLC 500 fixed or modular style hardware.
This Allen Bradley 1746-OBP16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output > Slc 500 range and is referenced internally as PartLogic SKU PL26931446866.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-OBP16 |
| UPC | 662468166010 |
| Weight | 0.56 lbs (0.26 kg) |
| Module Type | Digital DC Output Module |
| Outputs | 16 |
| Voltage Range | 20.4-26.4 Volts DC Source |
| No. of Outputs | Sixteen (16) |
| Current/Output | 1.5 or 1 amps |
| Current/Module | 6.4 amps |
| Backplane Current (5 Volts) | 250 milliamps |
| Applications | High Current |
| Fuse Protection | Yes |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| Compatible Fuse | Littelfuse #322010,10A or #332010,10A |
| Fuse kit part number | 1746-F8 |
| Recommended signal wires | Max 2 mm. sq. (14 AWG) |
| Brand | Allen Bradley |
