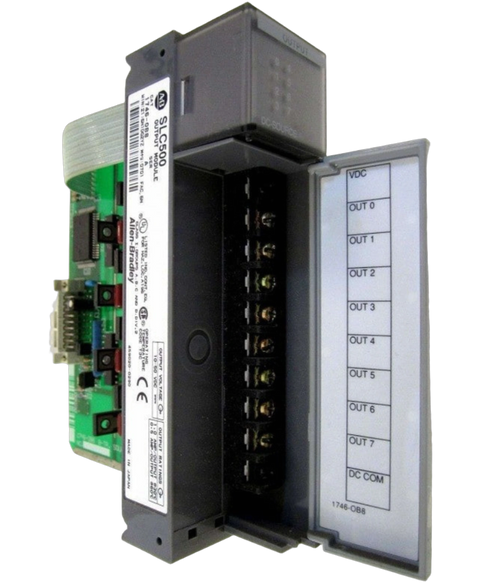

Allen Bradley 1746-OB8
The Allen-Bradley,Rockwell Automation 1746-OB8 output module is an 8-channel output module from the SLC 500 product line. It dissipates 6.9 Watts of total heat during operation and it dissipates 0.775 Watts of heat per output point. The 1746-OB8 output module is a DC output module with a voltage rating of 24 Volts DC. Its backplane current consumption rating is 0.135 Amps at 5 Volts DC and it is 0 Amps at 24 Volts DC. The 1746-OB8 output module can withstand up to 3 Amps of surge current per output point for up to 10 milliseconds.
This Allen Bradley 1746-OB8 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output > Slc 500 range and is referenced internally as PartLogic SKU PL27206641920.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-OB8 |
| GTIN | 10662073521355 |
| Weight | 0.50 lbs (0.23 kg) |
| Module Type | Digital DC Output Module |
| Voltage Range | 10-50 Volts DC Source |
| Outputs | 8 |
| Current/Output | 1 or 0.5 amps |
| Current/Module | 8 or 4 amps |
| Backplane Current (5 Volts) | 135 milliamps |
| Applications | High Current |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| UPC | 10662073521355 |
| Brand | Allen Bradley |
