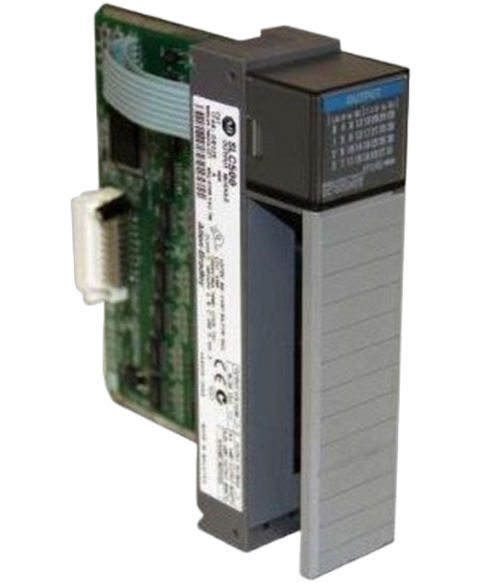

Allen Bradley 1746-OB32
Discontinued by manufacturer, digital output module, slc 500, 32 channel, transistor source output, 5-50VDC output signal, open style
This Allen Bradley 1746-OB32 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output > Slc 500 range and is referenced internally as PartLogic SKU PL26805758681.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | 1746-OB32 |
| Product type | Digital DC output module |
| System compatibility | Allen‑Bradley SLC 500 |
| Outputs | 32 points |
| Nominal output voltage | 24 VDC |
| Voltage range | 5–50 VDC |
| Current per output | 0.5–0.25 A (per point) |
| Current per module | 8 A max |
| Points per common | 16 |
| Backplane current (5 V) | 190 mA |
| Signal delay ON | 0.1 ms |
| Signal delay OFF | 1.0 ms |
| Step response | 60 ms in, 2.5 ms out |
| Operating temperature | 0 to 60 °C |
| Weight | 0.81 lb (0.37 kg) |
| UNSPSC | 32151705 |
| UPC | 662468092906 |
