Allen Bradley 1746-OAP12

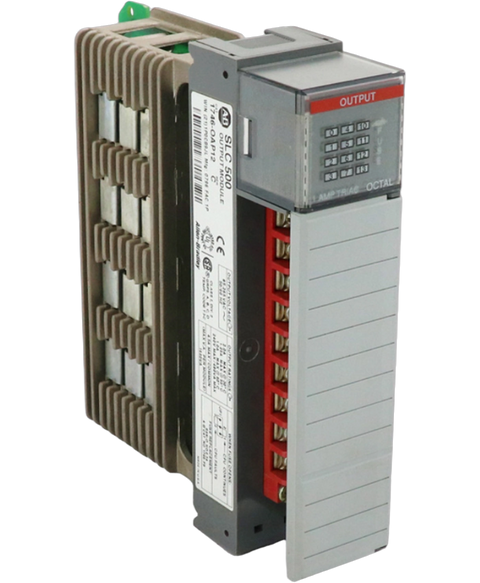

The Allen-Bradley 1746-OAP12 is an SLC500 Discrete AC output module. This AC output module features Twelve (12) AC output channels, providing signal voltages of 120,240VAC in Six (6) channels per common terminal. This module has a modifiable jumper for fuse monitoring.
This Allen Bradley 1746-OAP12 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output > Slc 500 range and is referenced internally as PartLogic SKU PL26805293714.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-OAP12 |
| UPC | 662468434140 |
| Weight | 1.00 lbs (0.45 kg) |
| Module Type | Digital AC Output Module |
| No. of Outputs | Twelve (12) Inputs |
| Output Voltage | 120 / 240VAC output |
| Operating Voltage Range | 85-264 VAC |
| Output Delay Time, OFF to ON | 11 ms |
| Output Delay Time, ON to OFF | 1 ms |
| OFF state leakage current | 2 mA |
| Load Current | 10 mA |
| Backplane Current at 5.1 Volts | 0.370 A |
| Continuous current per point | 2.0 A @ 30 °C (86 °F) 1.25 A @ 55 °C (131 °F) 1.0 A @ 60 °C (140 °F) |
| Continuous current per module, max | 9.0 A @ 30 °C (86 °F) 6.8 A @ 55 °C (131 °F) 6.0 A @ 60 °C (140 °F) |
| Voltage Range | 85-265 Volts AC |
| Outputs | 12 |
| Current/Output at 30 Celsius | 2 amps |
| Current/Output at 60 Celsius | 1 amp |
| Backplane Current (5 Volts) | 370 milliamps |
| Current/Module (30 Celsius) | 9 amps |
| Applications | High Current |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| Brand | Allen Bradley |
