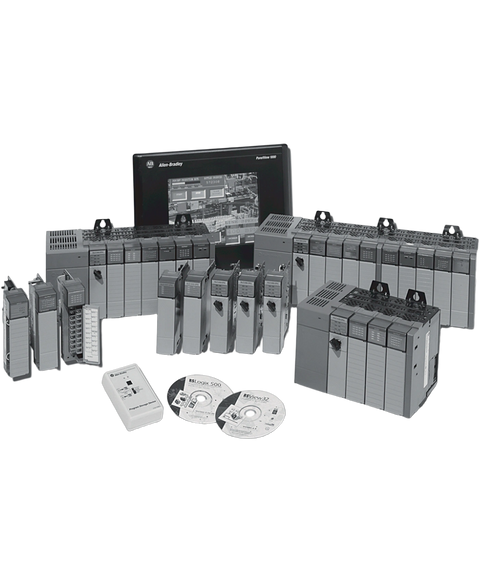

Allen Bradley 1746-NO8V
The Allen-Bradley 1746-NO8V is a SLC 500 analog output module. This module has Eight (8) single-ended analog output channels that delivers an output voltage range of ±10.25V dc. It has 16-bit, 320 µV,count resolution with overall accuracy of 0.1% of full scale at 25°C and 0.2% of full scale at 60°C.
This Allen Bradley 1746-NO8V is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output > Slc 500 range and is referenced internally as PartLogic SKU PL26805293824.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-NO8V |
| UPC | 781180054570 |
| Weight | 1.00 lbs (0.45 kg) |
| Resolution | 16-bit 320 µV/count |
| Module Type | Analog output module |
| Output wiring | Single-ended |
| Output voltages | -10 to +10VDC; -10.25 to +10.25VDC; 0 to 10VDC; 0 to 5VDC and 1 to 5VDC. |
| Output coding | -32,768 to +32,767 |
| Compatible chassis | Any 1746 chassis slot except slot 0 |
| Backplane current consumption | 120 mA at 5V dc 160 mA at 24V dc (J4 jumper set to RACK) 0 mA at 24V dc (J4 jumper set to EXT) |
| Backplane Power consumption | 5.6W |
| SLC Data Formats | Scaled engineering units Scaled for PID Proportional counts 1746-NO4 format User-defined scale |
| Optional Output Data Parameters | User defined scale limits Output clamping limit Output alarm limits Ramp rate/limit Preset fault value Output behavior under fault condition (reset, hold, preset) Alarms latch Reset latched alarms |
| Outputs | 8 |
| Backplane Current (5 Volts) | 120 milliamps |
| Backplane Current (24 Volts) | 160 milliamps |
| Update Time | 540 microseconds/8 channel |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| Brand | Allen Bradley |
