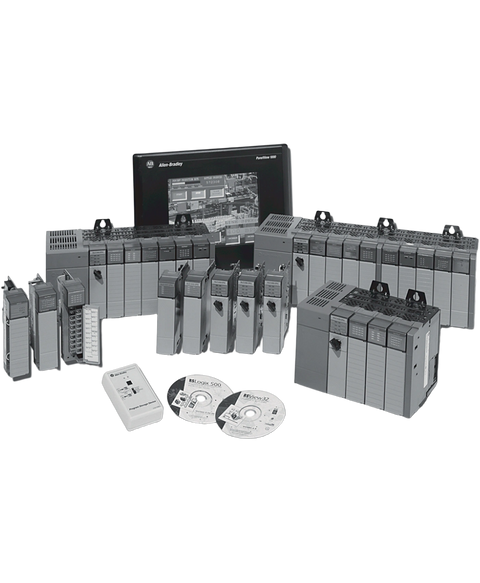

Allen Bradley 1746-NO8I
The Allen-Bradley 1746-NO8I is an SLC 500 Analog Output Module. This Analog Output Module has Eight (8) Current outputs channels that provides output range of 0 to +20 mA. This module is used with SLC 500 fixed or modular style hardware.
This Allen Bradley 1746-NO8I is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output > Slc 500 range and is referenced internally as PartLogic SKU PL26805284890.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-NO8I |
| UPC | 781180054563 |
| Weight | 0.63 lbs (0.28 kg) |
| Module Type | Analog Output Module |
| Backplane Current (5 Volts) | 120 milliamps |
| Outputs | Four (4) |
| Backplane Current (24 Volts) | 250 milliamps |
| Output Current range | 4 to 20 mA; 0 to 20 mA; 0 to 21 mA; 0 to 21.5 mA |
| Data Format | Scaled engineering units; Scaled for PID; Proportional counts; 1746-NO4 format; User-defined scale |
| Voltage Output Coding | -32,768 to +32,764 |
| Update Time | Class 1: 5 ms; Class 3: 10 ms |
| Backplane Current | (5 Volts) 120 mA; (24 Volts DC) 250 mA |
| Resolution | 16 bits |
| Step Response | 1 ms (0 to 95% of full scale) |
| Thermal Dissipation | 6.6 Watts |
| Ambient Operating Temperature | 0 to 60 degrees Celsius |
| Wire Size | Two 14 to 24 AWG wire per terminal |
| Brand | Allen Bradley |
