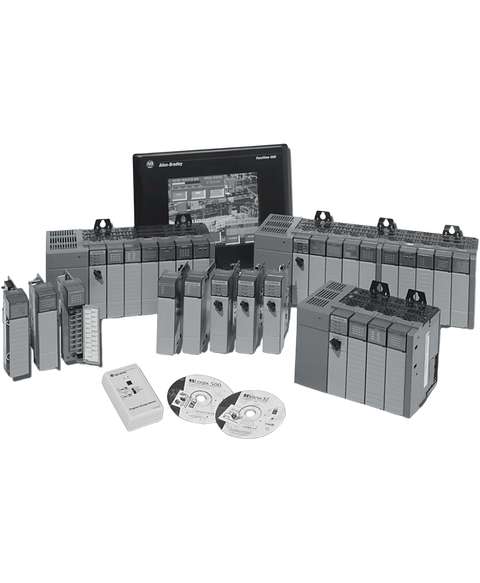

Allen Bradley 1746-NIO4V
The Allen-Bradley 1746-NIO4V is an SLC500 analog combination module. This module features Two (2) differential, voltage or current selectable per channel with input signal ranges of -20 to +20 mA (or) -10 to +10V dc and Two (2) current outputs with signal range of 0 to +20 mA.
This Allen Bradley 1746-NIO4V is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Combination > Slc 500 range and is referenced internally as PartLogic SKU PL26801440650.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-NIO4V |
| GTIN | 10662073735899 |
| Weight | 1.00 lbs (0.45 kg) |
| Module Type | Analog combination module |
| No. of inputs | Two (2) Differential Voltage / Current inputs |
| Current Input range | -20 to 20 mA |
| Current input resolution | 1.22070 µA per LSB |
| Voltage Input range | -10 to +10V dc - 1 LSB |
| Voltage input resolution | 305.176 µV per LSB |
| No. of Outputs | Two (2) non-isolated voltage outputs |
| Output Voltage range | -10 to +10 volts |
| Output voltage resolution | 1.22070 mV per LSB |
| Backplane Current at 5.1 Volts | 0.55 mA |
| Backplane Current at 24 Volts | 115 mA |
| Inputs | 2 |
| Outputs | 2 |
| Backplane Current (5 Volts) | 55 milliamps |
| Backplane Current (24 Volts) | 115 milliamps |
| Bandwidth | 10 Hertz |
| Update Time | 512 microseconds |
| Resolution | 16 bits in, 14 bits out |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| Mounting | Rack mount |
| UPC | 10662073735899 |
| Brand | Allen Bradley |
