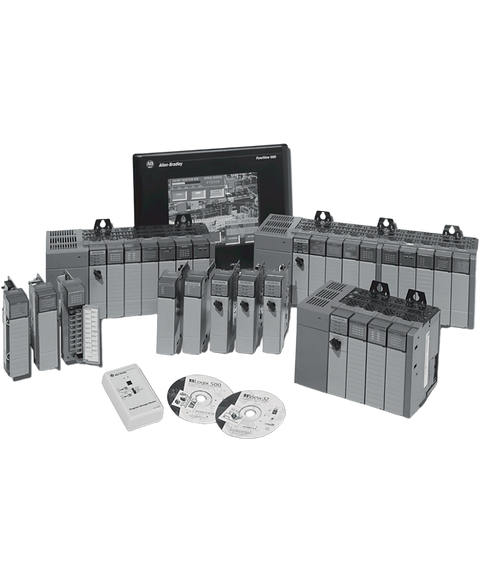

Allen Bradley 1746-NIO4I
The Allen-Bradley 1746-NIO4I is a SLC 500 Analog Combination Module. This Analog Combination Module has Two (2) Voltage or Current Inputs and Two (2) Current Output channels. This module is used with SLC 500 fixed or modular style hardware.
This Allen Bradley 1746-NIO4I is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Combination > Slc 500 range and is referenced internally as PartLogic SKU PL26801462089.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-NIO4I |
| GTIN | 10662073735882 |
| Weight | 1.00 lbs (0.45 kg) |
| Module Type | Analog Combination Module |
| Inputs | 2 |
| Input signal ranges | -20 to +20 mA; -10 to +10V dc |
| Backplane Current (24 Volts) | 145 milliamps |
| Output Voltage Range | -10 to +10V dc - 1 LSB |
| Backplane Current (5 Volts) | (5 Volts)55 mA; (24 Volts) 145 mA |
| Bandwidth | 10 Hertz |
| Update Time | 512 microseconds |
| Resolution | 16 bits in, 14 bits out |
| UPC | 10662073735882 |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| UNSPSC | 32151705 |
| Tested Voltage Isolation | 500 Volts |
| Brand | Allen Bradley |
