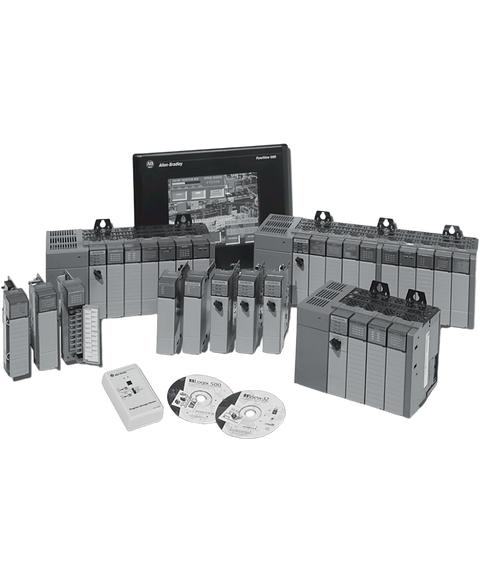

Allen Bradley 1746-NI16I
The Allen-Bradley 1746-NI16I is a SLC 500 Analog I,O Module. This Analog I,O Module has Sixteen (16) Inputs configurable for 0 to 20 mA, 4 to 20 mA, ±20 mA, and 0 to 1 mA. This module is a single-slot module.
This Allen Bradley 1746-NI16I is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input > Slc 500 range and is referenced internally as PartLogic SKU PL26805287942.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-NI16I |
| GTIN | 10611320228196 |
| Weight | 0.75 lbs (0.34 kg) |
| Module Type | Analog I/O Module |
| Backplane Current (5 Volts) | 125 milliamps |
| Inputs | Sixteen (16) |
| Backplane Current (24 Volts DC) | 75 milliamps |
| Electrical Signal type | 0 to 20 mA, 4 to 20 mA, ±20 mA, and 0 to 1 mA |
| Bandwidth | 6-250 Hertz |
| Chassis location | Any I/O module slot except slot 0 |
| Step Response | 9-630 milliseconds |
| Backplane Current | (5 Volts) 125 mA;(24 Volts DC)75 mA |
| Thermal Dissipation | 2.43 Watts |
| Conversion type | Sigma - Delta |
| Applications | Combination 120 Volts AC I/O |
| Input Filtering | Low-pass digital filter with programmable filter frequencies |
| UPC | 10611320228196 |
| Input Filter Frequencies | 6 Hz, 10 Hz, 20 Hz, 40 Hz, 60 Hz, 80 Hz, 100 Hz, 250 Hz |
| Isolation | 500V ac isolation for 1 second |
| LED Indicators | 5 green status indicators one for each group of 4 channels, and one for module status |
| Recommended Cable | Belden #8761 or equivalent |
| Brand | Allen Bradley |
