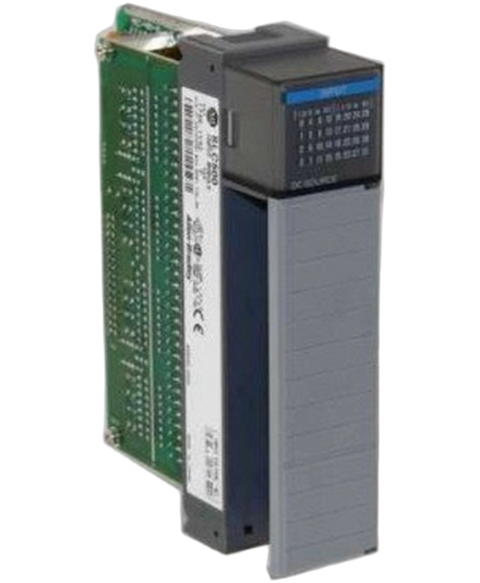

Allen Bradley 1746-IV32
The Allen-Bradley 1746-IV32 is an SLC 500 Discrete Input module. This module mainly features thirty-two (32) 24 Volt DC input channels in four (4) groups of eight (8) channels each. It has a backplane current consumption of 0.050 Amperes @ 5 Volts DC. It is a single slot module that directly installs to any SLC 500 chassis.
This Allen Bradley 1746-IV32 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input > Slc 500 range and is referenced internally as PartLogic SKU PL26805609406.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-IV32 |
| GTIN | 10662468092767 |
| Weight | 0.38 lbs (0.17 kg) |
| Signal delay | ON = 3 ms; OFF = 8 ms |
| Module Type | 24VDC input module |
| No. of groups | 4 |
| Input voltage range | 15 to 30V dc at 50° C; 15 to 26.4V dc at 60° C |
| On-state Voltage, min. | 15.0V dc |
| Off-state voltage, max | 5.0V dc |
| Off-state current, max | 1.5 mA |
| Input current | 5.1 mA at 24V dc |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Operating Temperature | 0...+60 °C (+32...+140 °F) |
| Relative Humidity | 5 to 95% without condensation |
| Agency Certification | UL / C-UL listed Class I, Division 2, Groups A, B, C, D CE marked for all applicable directives C-Tick marked for all applicable acts |
| Voltage Range | 15-30 Volts DC Source |
| Inputs | 32 |
| Backplane Current (5 Volts DC) | 106 milliamps |
| Off State Current | 1 milliamp |
| Applications | Combination 120 Volts AC I/O |
| UPC | 10662468092767 |
| Brand | Allen Bradley |
