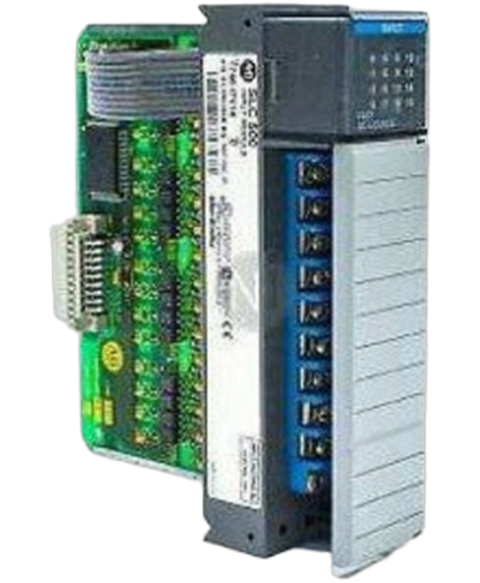

Allen Bradley 1746-ITV16
The Allen-Bradley 1746-ITV16 is a SLC 500 sourcing discrete input module. This module has Sixteen (16) fast response channel that accepts a nominal input voltage of 24VDC with operating voltage range of 10-30VDC. It has One (1) group of 16 channels with backplane current draw of 0.085 A. It has maximum off-state voltage of 5VDC with nominal input current of 8 mA at 24VDC. Each channel of this module has maximum signal delay of 0.30 ms for ON transition and 0.50 ms for OFF transition.
This Allen Bradley 1746-ITV16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input > Slc 500 range and is referenced internally as PartLogic SKU PL26805307924.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-ITV16 |
| UPC | 662468070539 |
| Weight | 0.69 lbs (0.31 kg) |
| Module Type | Fast response discrete input module |
| Product Family | PowerFlex 400 |
| Nom Input Voltage | 24VDC |
| Input Voltage Range | 10-30 VDC |
| Wiring configuration | Source wiring configuration |
| Backplane current consumption | 0.085 A |
| Signal delay, max. | On = 0.3 ms; Off = 0.5 ms |
| Off-state Voltage, max | 5VDC |
| Off-state current, max | 1.0 mA |
| Nominal input current | 8 mA at 24VDC |
| Voltage Range | 10-30 Volts DC Source |
| Inputs | 16 |
| Backplane Current (5 Volts DC) | 85 milliamps |
| Signal delay | 0.3 or 0.5 milliseconds |
| Off State Current | 1.5 milliamps |
| Applications | Combination 120 Volts AC I/O |
| Brand | Allen Bradley |
