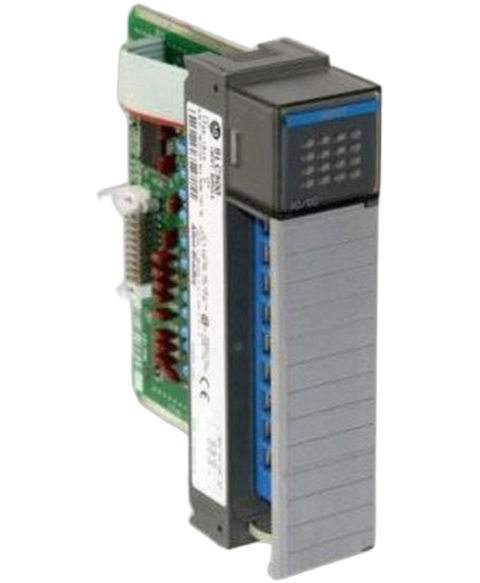

Allen Bradley 1746-IN16
The Allen-Bradley 1746-IN16 is a SLC 500 Digital AC,DC Input Module. This Input Module has Sixteen (16) input channels with a voltage range of 24 VAC , VDC. This module occupies single slot of the SLC 500 chassis.
This Allen Bradley 1746-IN16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input > Slc 500 range and is referenced internally as PartLogic SKU PL26805294135.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-IN16 |
| UPC | 662468092746 |
| Weight | 0.50 lbs (0.23 kg) |
| Operating Voltage | 24 Volts AC/DC Sink |
| Module Type | Digital DC Input Module |
| Voltage Range | 24 VDC / 24 VAC |
| Inputs | 16 |
| Signal delay | 15 or 25 milliseconds |
| Backplane Current (5 Volts DC) | At 5 Volts DC: 0.085 A; |
| Off State Current | 1 milliamps |
| Signal delay, DC Voltage | 15 ms |
| Applications | General Purpose 125 Volts DC Inputs |
| Signal delay, AC Voltage | 25 ms |
| I/O Connection | 1746-HT and 1746-HCA |
| Nominal Input Current | 8 mA @ 24V DC; 8 mA @ 24V AC |
| Step Response | 100 milliseconds in, 2.5 milliseconds out |
| Watts Per Point | 0.35 |
| Minimum Watts | 0.425 |
| Total Watts | 6 |
| Brand | Allen Bradley |
