Allen Bradley 1746-IM16

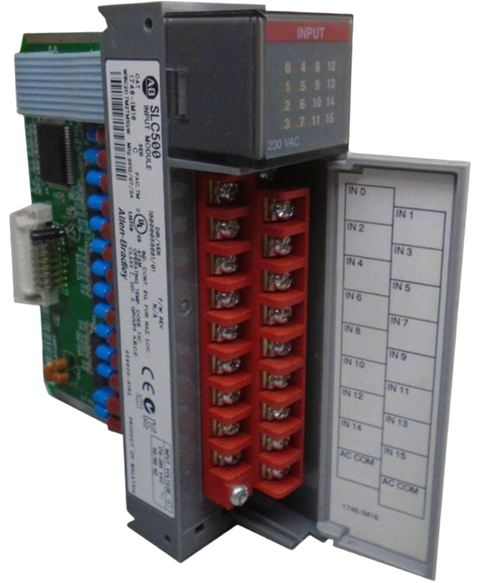

The Allen-Bradley 1746-IM16 is an SLC 500 Discrete input module. This module mainly features sixteen (16) 170-265 Volt AC input channels @ 47-63 Hertz. It has a single group of 16 channels with a backplane current consumption of 0.085 Amperes @ 5 Volts DC. It is a single slot module that directly installs to any SLC 500 chassis.
This Allen Bradley 1746-IM16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input > Slc 500 range and is referenced internally as PartLogic SKU PL26801463624.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-IM16 |
| UPC | 662468092739 |
| Weight | 0.25 lbs (0.11 kg) |
| Signal delay | ON = 35 ms; OFF - 45 ms |
| Module Type | AC Input Module |
| Input voltage range | 170-265 VAC, 47-63 Hz |
| Off-state voltage, max | 30V AC |
| Off-state current, max | 2 mA |
| Input current | 12 mA @ 120V AC, nom |
| Inrush current, max | 0.8 A |
| Inrush current time duration, max | 0.5 ms |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Operating Temperature | 0...+60 °C (+32...+140 °F) |
| Relative Humidity | 5 to 95% without condensation |
| Agency Certification | UL / C-UL listed Class I, Division 2, Groups A, B, C, D CE marked for all applicable directives C-Tick marked for all applicable acts |
| Voltage Range | 170-265 Volts AC |
| Inputs | 16 |
| Backplane Current (5 Volts DC) | 85 milliamps |
| Off State Current | 2 milliamps |
| Applications | General Purpose 125 Volts DC Inputs |
| I/O Connection | 1746-HT and 1746-HCA |
| Step Response | 100 milliseconds in, 2.5 milliseconds out |
| Brand | Allen Bradley |
