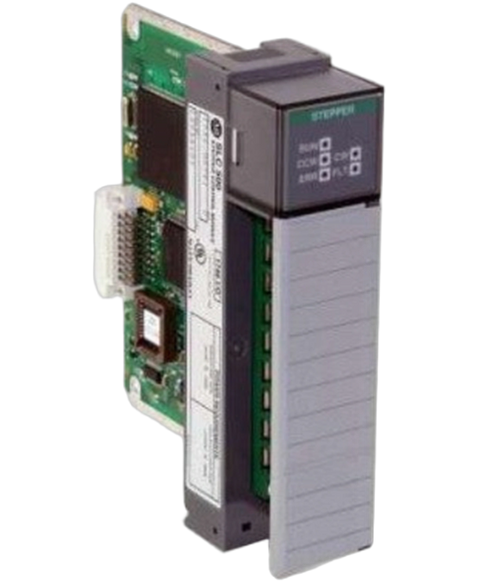

Allen Bradley 1746-HSTP1
The Allen-Bradley 1746-HSTP1 is a SLC 500 SLC Stepper Controller Module. This is an intelligent module that is compatible with other 1746 IO modules. This module is compatible for use with SLC 5,01, 5,02, 5,03, 5,04, 5,05 and fixed style hardware with 2-Slot expansion rack. This module has Differential Inputs and Digital Outputs with an Input Frequency of 250 kilohertz.
This Allen Bradley 1746-HSTP1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Specialty > Slc 500 range and is referenced internally as PartLogic SKU PL26805307962.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-HSTP1 |
| UPC | 662453567082 |
| Weight | 0.50 lbs (0.23 kg) |
| Module Type | SLC Stepper Controller Module |
| No. of Axes | 1 |
| Compatible Interfaces | Stepper Motor Driver |
| Speed Range | 1 to 250,000 pulses per second |
| Acceleration | 1 to 2000 pulses per second Trapezoidal velocity profile |
| Acceleration Step Rate | 4 milliseconds or less |
| Inputs | Differential |
| Outputs | Digital |
| Input Frequency | 250 kilohertz |
| Backplane Current (5 Volts) | 200 milliamps |
| Backplane Current (24 Volts) | 90 milliamps |
| I/O Connection | 1746-HT and 1746-HCA |
| Step Response | 100 milliseconds in, 2.5 milliseconds out |
| Brand | Allen Bradley |
