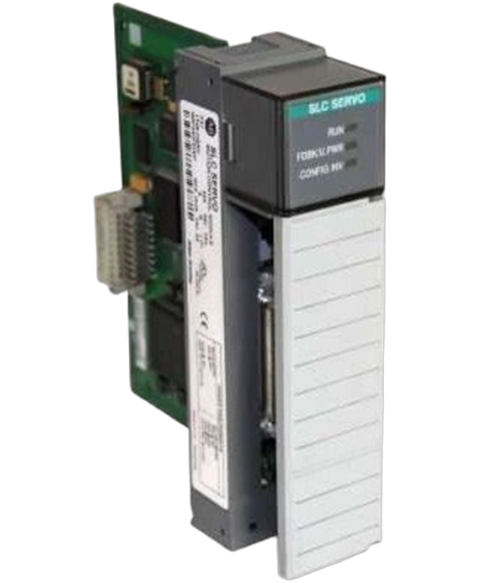

Allen Bradley 1746-HSRV
The Allen-Bradley 1746-HSRV is an SLC 500 Servo Control module. This module is compatible for use with the SLC 5,03, SLC 5,04 and SLC 5,05 processors. It supports incremental, absolute or speed moves. It is a single slot module and implements control of absolute position over a 32-bit register. It has 12 input words; 12 output words, and is recommended to be installed in Slot 1 or the lowest numbered I,O slot. Up to 12 HSRV can be installed in a single rack.
This Allen Bradley 1746-HSRV is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Specialty > Slc 500 range and is referenced internally as PartLogic SKU PL26805289248.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-HSRV |
| Weight | 0.50 lbs (0.23 kg) |
| Module Type | Servo Control Module |
| Compatible Processors | SLC 5/03, SLC 5/04 and SLC 5/05 processors |
| No. of input Words | 12 Words |
| Slot Width | Single Slot |
| Installation slot | As close as possible to the processor |
| Supported number of 1746-HSRV per rack | 12 |
| Operating modes | Configuration mode; Command Mode |
| Command mode operation | Absolute moves, Incremental moves, Speed moves, Monitor moves, Hold moves, Unhold moves, Blend moves, Emergency stop operations, Homing operations, Preset operations, Clear faults and Alternate home moves. |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Operating Temperature | 0...+60 °C (+32...+140 °F) |
| Relative Humidity | 5 to 95% without condensation |
| Agency Certification | UL / C-UL listed Class I, Division 2, Groups A, B, C, D CE marked for all applicable directives C-Tick marked for all applicable acts |
| Inputs | 3 |
| Output | 1 |
| Input Frequency | 300 kilohertz |
| Backplane Current (5 Volts) | 300 milliamps |
| Update Time | 2 milliseconds |
| Slots | 1 |
| I/O Connection | 1746-HT and 1746-HCA |
| Step Response | 100 milliseconds in, 2.5 milliseconds out |
| UPC | 10662468696446 |
| Brand | Allen Bradley |
