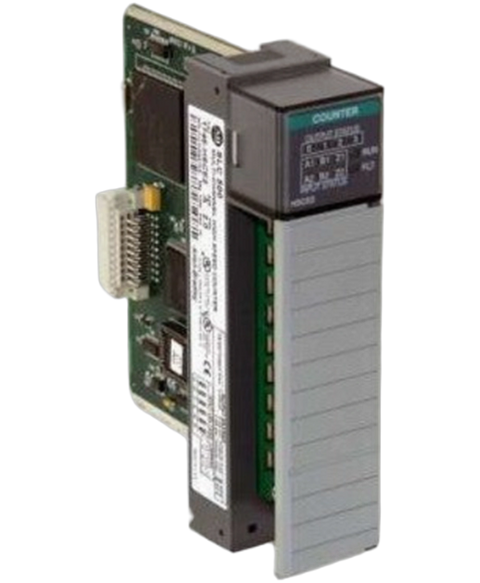

Allen Bradley 1746-HSCE2
The Allen-Bradley 1746-HSCE2 is an SLC 500 input module. This is a multi-channel High-speed counter module. This is an intelligent module that is capable of counting in both directions. It has inputs ±A1, ±B1, ±Z1, ±A2, ±B2, and ±Z2 with input voltage range of 4.2V dc to 12V dc and 10V dc to 30V dc. It also has Eight (8) outputs composed of Four (4) virtual and Four (4) real 5-30 VDC sourcing outputs.
This Allen Bradley 1746-HSCE2 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Specialty > Slc 500 range and is referenced internally as PartLogic SKU PL26801466569.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | SLC 500 |
| Part Number | 1746-HSCE2 |
| UPC | 611320083750 |
| Weight | 0.50 lbs (0.23 kg) |
| Module Type | High-Speed input module |
| Module inputs | ±A1, ±B1, ±Z1, ±A2, ±B2, and ±Z2 |
| Input Voltage, nominal | 5VDC; 24VDC |
| Operating Voltage Range | 4.2V dc to 12V dc; 10V dc to 30V dc |
| Min. Pulse Width | 475 ns |
| Min. Phase Separation | 200 ns |
| Max. Input Frequency | 1 MHz |
| Module outputs | Eight (8) outputs; Four (4) Virtual / Four (8) real |
| Output voltage range | 10-30 VDC |
| Inputs | 4 Single-Ended and 2 Differential Quadrature |
| Outputs | 4 |
| Input Frequency | 1 Megahertz |
| Backplane Current (5 Volts) | 250 milliamps |
| Update Time | 1.5 milliseconds |
| Slots | 1 |
| I/O Connection | 1746-RT25G |
| Step Response | 100 milliseconds in, 2.5 milliseconds out |
| Input Voltage | 30 Volts DC |
| Brand | Allen Bradley |
