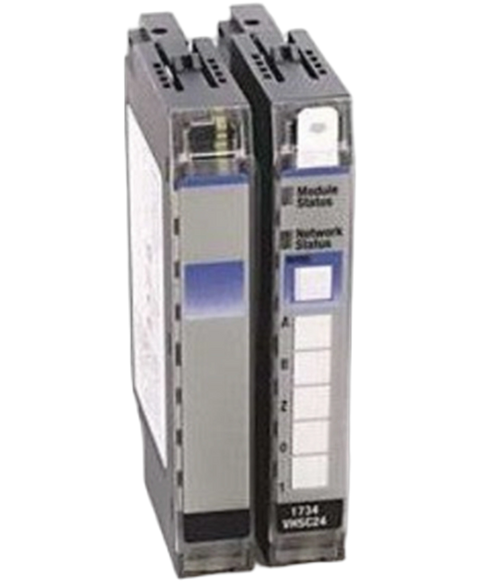

Allen Bradley 1734-VHSC24
The Allen-Bradley 1734-VHSC24 is a POINT I,O VHSC Module. It has One (1) – 1 group of A,Aret, B,Bret and Z,Zret inputs and One (1) isolated group of 2 capable of 0.5 A @ 24V DC outputs. This VHSC Module requires wiring assembly of 1734-TB, 1734-TBS.
This Allen Bradley 1734-VHSC24 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Specialty > Point io range and is referenced internally as PartLogic SKU PL26805308226.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | Point I/O 1734 |
| Part Number | 1734-VHSC24 |
| UPC | 612598269198 |
| Weight | 0.19 lbs (0.09 kg) |
| Series | POINT I/O |
| Counter | 1 |
| Module Type | Very High Speed Counter Module |
| Input Voltage | 24 Volts DC |
| No. of Inputs | 1 – 1 group of A/Aret, B/Bret and Z/Zret |
| Output Groups | 1 of 2 |
| Input Filter selections | Off; 10 ?s; 100 ?s; 1.0 ms; 10.0 ms |
| Maximum input frequency | 1.0 MHz counter and encoder X1 configurations 500 kHz encoder X2 configuration (no filter) 250 kHz encoder X4 configuration (no filter) |
| No. of Outputs | 1 isolated group of 2 capable of 0.5 A @ 24V DC |
| Output Voltage Range | 10…28.8V DC |
| Key Switch Position | 2 |
| Power Dissipation | 1.9 Watts |
| Thermal Dissipation | 6.5 BTU/hour |
| Brand | Allen Bradley |
