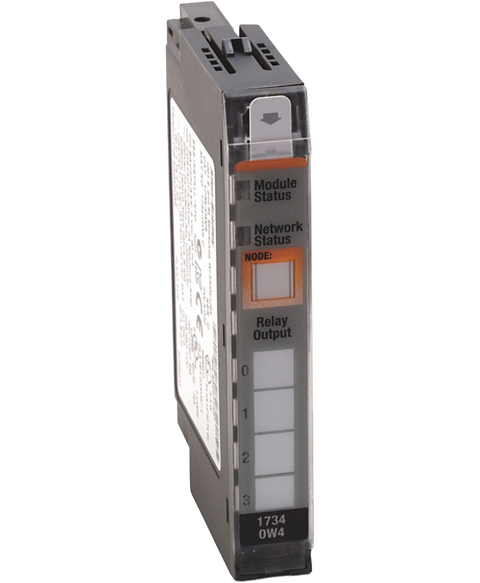

Allen Bradley 1734-OW4
The 1734-OW4 is an Allen-Bradley POINT IO module. This module is a Relay output module featuring Four (4) Normally Open (N.O.) SPST Relay contact outputs. The contact outputs are rated 5-30 VDC; 120 VAC and 250 VAC. This module has a POINTBus current draw of 90 mA @ 5DVC. It requires use of 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS terminal base for mounting and wiring the module.
This Allen Bradley 1734-OW4 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output > Point io range and is referenced internally as PartLogic SKU PL26801443262.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | Point I/O 1734 |
| Part Number | 1734-OW4 |
| UPC | 612598309849 |
| Weight | 0.25 lbs (0.11 kg) |
| Series | POINT I/O |
| Module Type | Digital Contact Module |
| Outputs | 4 N.O relay |
| Product Description | Four (4) channel Relay output module |
| POINTBus Current | 80 milliamps |
| No. of outputs | Four (4) Normally Open (N.O.) contact outputs |
| Power Dissipation, Max | 0.5 Watts |
| Output delay time, on to off, max | 26 ms |
| Thermal Dissipation | 1.7 BTU/hour |
| Contact resistance, initial | 30 m? |
| Leakage current, off-state output, max | 1.2 mA and bleed resistor through snubber circuit @ 240V AC |
| Thermal dissipation, max | 1.7 BTU/hr |
| Terminal Base | 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS |
| Mounting type | DIN Rail |
| Enclosure | None (open-style) |
| Operating temperature | -20…55 degrees C (-4…131 degrees F) |
| Nonoperating temperature | -40…85 degrees C (-40…185 degrees F) |
| Brand | Allen Bradley |
