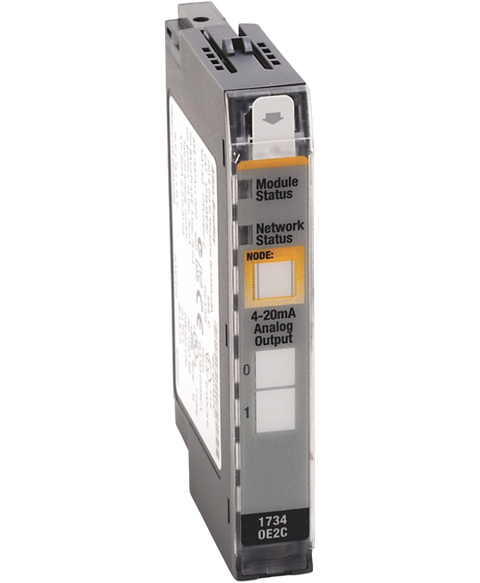

Allen Bradley 1734-OE2C
The Allen-Bradley 1734-OE2C is a POINT IO module that features Two (2) single-ended, non-isolated Current output channels. Each channel is configurable for 0-20 mA and 4-20 mA output signals with absolute accuracy of 0.1% Full Scale @ 25 Deg. Celsius. It is compatible with any POINT IO communication adapter for implementing distributed I,O architecture. This module requires 1734-TB, 1734-TBS, 1734-TB3, 17340TB3S wiring base assemblies.
This Allen Bradley 1734-OE2C is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output > Point io range and is referenced internally as PartLogic SKU PL26801465010.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | Point I/O 1734 |
| Part Number | 1734-OE2C |
| UPC | 612598205295 |
| Weight | 0.13 lbs (0.06 kg) |
| Resolution | 13 bits - over 0-21mA 2.5µA/cnt (average value - typical range: 2.3...2.7µA/cnt) |
| Conversion Rate | 16µs |
| Module Type | Analog Output Module |
| Series | POINT I/O |
| No. of outputs | Two (2) Single-ended, non-isolated channels |
| Output signal | 0-20 mA; 4-20 mA |
| Absolute Accuracy | 0.1% Full Scale @ 25 Deg. Celsius |
| Step Response (63% of FS) | 24 µs |
| Converter Type | Digital to analog converter |
| Data Format | Signed Integer |
| Current Draw | 75 mA @5V dc |
| Power Dissipation | 750 ? load on each output - 1.23 W 0? load on each output - 1.83 W |
| Enclosure type rating | None (open-style) |
| Keyswitch position | 4.00E+00 |
| Module Location | 1734-TB, 1734-TBS, 1734-TB3, 17340TB3S wiring base assembly |
| Status indicators | 1 green/red module status indicator, logic side 1 green/red network status indicator, logic side 2 green/red output status indicators, logic side |
| Outputs | 2 Single-Ended, Non-Isolated |
| Supply Voltage | 24 Volts DC |
| Output Current | 4-20 or 0-20 milliamps |
| Isolation Voltage | 50 Volts Continuous |
| Conversion Type | Digital-Analog |
| POINTBus Current | 75 milliamps (at 5 Volts DC) |
| Enclosure | Open |
| Operating Temperature | -20-55 Celsius |
| Brand | Allen Bradley |
