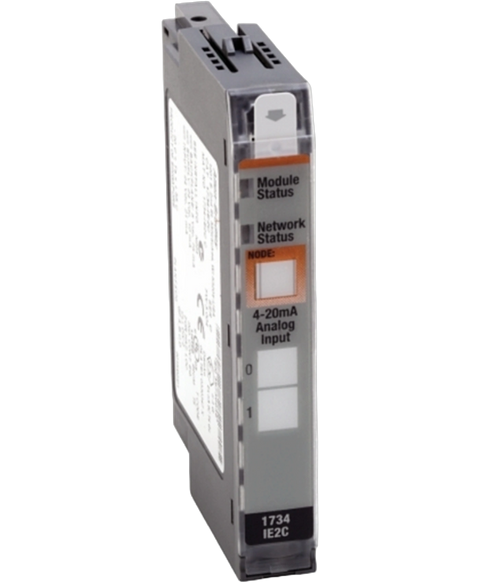

Allen Bradley 1734-IE2C
The 1734-IE2C is an analog input module that is part of Allen-Bradley’s POINT IO product family. This module features Two (2) single-ended, non-isolated Current input channels. Each channel is configurable for 0-20 mA and 4-20 mA output signals with 16 bits resolution - over 0...21 mA 0.32 μA,cnt. It is compatible with any POINT IO communication adapter, typically used for implementing distributed I,O architecture. This module requires 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS wiring base assemblies.
This Allen Bradley 1734-IE2C is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plcs and controllers > Io modules > Analog input range and is referenced internally as PartLogic SKU PL26805655297.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | Point I/O 1734 |
| Part Number | 1734-IE2C |
| UPC | 612598205233 |
| Weight | 0.06 lbs (0.03 kg) |
| Resolution | 16 bits – over 0...21 mA 0.32 μA/cnt |
| Module Type | Analog Input Module |
| Series | POINT I/O |
| No. of outputs | Two (2) Single-ended, non-isolated channels |
| Output signal | 0-20 mA; 4-20 mA |
| Absolute Accuracy | 0.1% Full Scale @ 25 Deg. Celsius |
| Input step response (per channel) | 80 ms @ Notch = 50 Hz 70 ms @ Notch = 60 Hz (default) 16 ms @ Notch = 250 Hz 8 ms @ Notch = 500 Hz |
| Input update rate per module | 120 ms @ Notch = 50 Hz 100 ms @ Notch = 60 Hz (default) 24 ms @ Notch = 250 Hz 12 ms @ Notch = 500 Hz |
| Current Draw | 75 mA @5V dc |
| Power Dissipation | 0.6 W @ 28.8V DC |
| Enclosure type rating | None (open-style) |
| Keyswitch position | 3 |
| Module Location | 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS wiring base assembly |
| Inputs | 2-Point |
| Conversion Type | Delta Sigma |
| Calibration | Factory Calibrated |
| Max Overload | Fault Protected 28.8 Volts DC |
| Enclosure Type | Open |
| Data Format | Signed Integer |
| Voltage | 10 to 28.8 Volts DC |
| Current | 10 mA |
| Brand | Allen Bradley |
