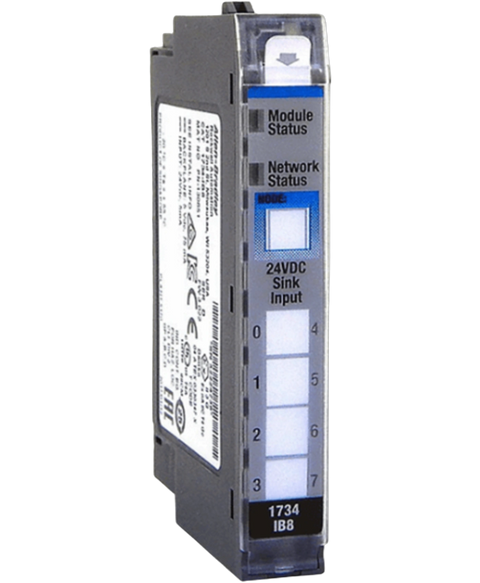

Allen Bradley 1734-IB8
The Allen-Bradley 1734-IB8 is a POINT IO module that features Eight (8) Discrete sinking input channels. It has One (1) group of channels with Eight (8) inputs per channel. It accepts nominal signal voltage of 24VDC and compatible with any POINT IO communication adapter for implementing distributed I,O architecture. This module requires 1734-TB or 1734-TBS wiring base assembly.
This Allen Bradley 1734-IB8 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plcs and controllers > Io modules > Digital input range and is referenced internally as PartLogic SKU PL26801430829.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | Point I/O 1734 |
| Part Number | 1734-IB8 |
| Weight | 0.13 lbs (0.06 kg) |
| Power Dissipation | 1.6 Watt/5.5 BTU/hour |
| POINTBus Current | 75 mA |
| Input Voltage | 24 Volts DC |
| Module Type | Digital DC Sinking Input |
| Series | POINT I/O |
| No. of Inputs | 8; Sinking input |
| Input Voltage range | 10-28.8VDC |
| Input Current range | 2-5mA |
| Input Current, nominal | 4mA @24VDC |
| Input Filter Time | 0.5 ms hardware plus 0...63 ms (user-selectable) |
| Enclosure type rating | None (open-style) |
| Keyswitch position | 1 |
| Module Location | 1734-TB or 1734-TBS wiring base assembly |
| Module Status indicators | 1 green/red, logic side |
| Input status indicators | 8 yellow, logic side |
| Inputs | 8 |
| Input Current Maximum | 5 milliamps |
| UPC | 10612598308573 |
| Brand | Allen Bradley |
