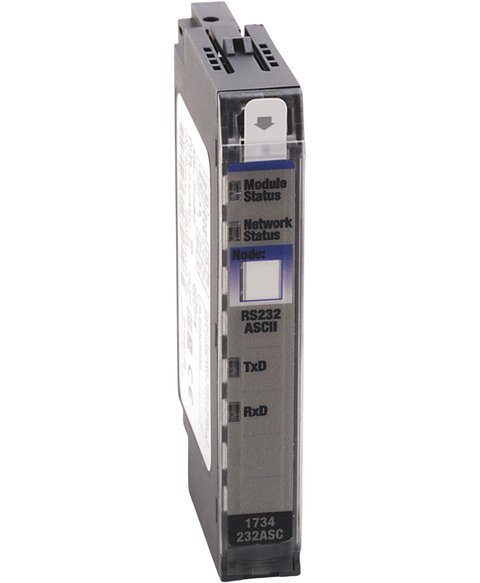

Allen Bradley 1734-232ASC
The 1734-232ASC is an ASCII Interface module from the 1734 POINT I,O product family that is manufactured by Allen-Bradley. This module features One (1) full-duplex RS232 terminal that supports ASCII protocol. This module accepts +3 to +25V dc as "0", Asserted, ON, Space, Active signal and -3 to -25V dc as "1", Disasserted, OFF, Mark, Inactive signal. It supports serial character framing 7N2, 7E1, 7O1, 8N1, 8N2, 8E1, 8O1, 7E2, 7O2, and Serial Port Communication Speeds such as 9600, 1200, 2400, 4800, 19.2k, and 38.4k.
This Allen Bradley 1734-232ASC is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plcs and controllers > Io modules range and is referenced internally as PartLogic SKU PL27211077137.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | Point I/O 1734 |
| Part Number | 1734-232ASC |
| UPC | 612598290277 |
| Weight | 0.06 lbs (0.03 kg) |
| Supply Current | 15mA @ 24V dc |
| Module Type | POINT I/O ASCII communication module |
| Series | POINT I/O modules |
| No. of inputs | One (1) |
| Indicators | 1 green/red module status indicator, logic side 1 green/red network status indicator, logic side 2 green TXD, RXD status indicators, logic side |
| Module Location | 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS wiring base assembly |
| Power Dissipation | 0.75W maximum @ 28.8V dc |
| Thermal Dissipation | 2.5 BTU/hr maximum @ 28.8V dc |
| External dc voltage, nominal | 24VDC |
| External DC voltage range | 10-28.8V dc |
| Enclosure type rating | None (open-style) |
| Keyswitch position | 6 |
| Allen-Bradley | ASCII communication module |
| Product Family | 1734 POINT I/O |
| Voltage Range | 10-28.8 volts DC |
| Supply Voltage | 24 volts DC nominal |
| Supported Protocol | ASCII |
| No of application ports | One (1) Full-Duplex port |
| Communication speed | 9600, 1200, 2400, 4800, 19.2k, and 38.4k communication speeds |
| Serial Character Framing | 7N2, 7E1, 7O1, 8N1, 8N2, 8E1, 8O1, 7E2, 7O2 |
| POINTBus Current draw | 75 mA max@ 5 VDC |
| Nominal supply voltage | 24 VDC |
| Operating Temperature | -20 to 55oC (-4 to 131oF) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Brand | Allen Bradley |
