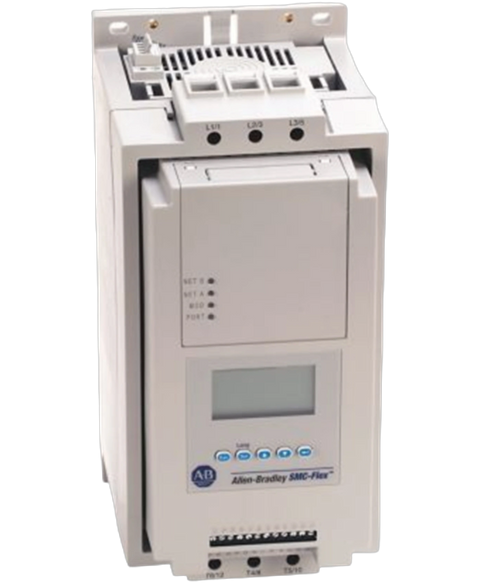

Allen Bradley 150-F480NBD
The Allen-Bradley 150-F480NBD is a SMC Flex Smart Motor Controller. This motor controller has a line Voltage of 200-460VAC, 3-Phase, 50 and 60 Hz and control Voltage of 100-240V AC (5-480 A units). It delivers maximum continuous output current of 480 Amperes and output power of 400 HP at 460VAC rated voltage with an open type enclosure.
This Allen Bradley 150-F480NBD is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Softstarters range and is referenced internally as PartLogic SKU PL26933396246.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | SMC-Flex |
| Part Number | 150-F480NBD |
| UPC | 662073047889 |
| Weight | 88.00 lbs (39.92 kg) |
| Bulletin Number | 150 |
| Control Voltage | 100…240V AC (5…480 A units) |
| Product Family | SMC Flex Smart Motor Controller |
| Operating Modes | Soft Start, Full Voltage Start, Smart Motor Braking, Current Limit Start, Dual Ramp Start, Accu-Stop, Selectable Kickstart, Pump Start, Slow Speed with Braking, Coast-to-rest, Preset Slow Speed, Linear Speed Acceleration (Tachometer required), Soft Stop and Pump Stop |
| Line Voltage | 200…460V AC, 3-Phase, 50 and 60 Hz |
| Maximum output Current | 480.0 A |
| Maximum output Power | 400 HP |
| Communications | One DPI provided for connection to optional human interface and one DPI provided for connection to communication |
| Auxiliary Contacts | Four fully programmable contacts as normal/up-to- speed/fault/alarm/network (N.O./N.C.), or external bypass (N.O. only) |
| Metering | Amps, volts, kW, kWh, MW, MWH, elapsed time, power factor, motor thermal capacity usage |
| Protection and Diagnostics | Power loss, line fault, voltage unbalance, excessive starts/hour, phase reversal, undervoltage, overvoltage, controller temp, stall, jam, open gate, overload, underload, communication fault. |
| Enclosure Type | open |
| Controller Rating | 480 Amps, 400 Horsepower at 460 Volts AC |
| Input Line Voltage | 200 to 460 Volts AC, 3-phase, 50 and 60 Hertz |
| Rated Voltage | 200 to 460 Volts AC |
| Brand | Allen Bradley |
