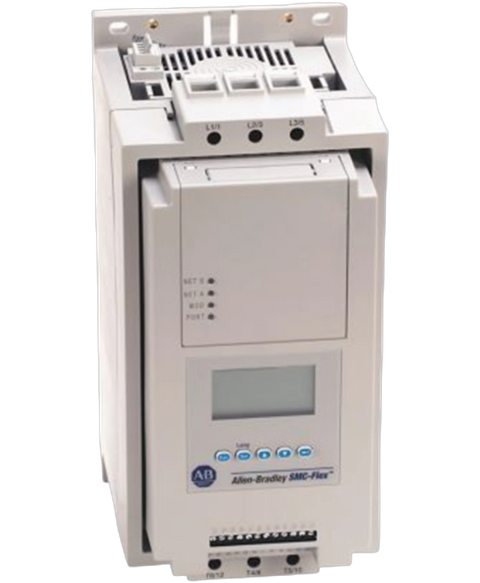

Allen Bradley 150-F201NBDB
The 150-F201NBDB is part of the Smart Motor Controller (SMC) series of Allen-Bradley. Commonly referred to as a motor starter, this device is part of the SMC Flex product family that is designed to implement protective motor starting and stopping methods such as Soft Start, Kickstart, Current Limit, Pump, Control, Dual ramp start, Full Voltage Start, Coast, Soft Stop and Smart Motor Braking. It has an operating voltage 208-460VAC, 3-Phase, at 50,60Hz. It supports operation with line-connected and Delta-connected motors. This soft-starter is rated 201 Amperes, 150 HP at 460 VAC voltage while the control voltage is 100-240 VAC rated.
This Allen Bradley 150-F201NBDB is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Softstarters range and is referenced internally as PartLogic SKU PL26947039613.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | SMC-Flex |
| Part Number | 150-F201NBDB |
| UPC | 662073059950 |
| Weight | 60.06 lbs (27.24 kg) |
| Type of component | Smart Motor Controller |
| Product Family | SMC Flex Smart Motor Controller |
| Current rating | 201 A |
| Horsepower rating | 150 HP |
| Operating Modes | Soft Start, Current Limit Start, Selectable Kickstart, Coast-to-rest, Soft Stop, Full Voltage Start, Dual ramp start, Pump Start, Preset Slow Speed, Pump Stop, Smart Motor Braking, Accu-Stop, Slow Speed with Braking, and Linear Speed Acceleration with use of a Tachometer |
| Input line voltage | 200 - 460V AC |
| Line Voltage | 208…460V AC, 3-Phase, 47 - 63 Hz |
| Control voltage | 100 - 240V AC |
| Operating voltage | 200 - 460V AC |
| Output current | 201 Amperes |
| Frequency | 50/60 Hz |
| Output power | 150 HP |
| Enclosure Type | Open Style |
| Supported Motor Type | Squirrel-cage induction motor; Wye-Delta, six-lead motor |
| Output contacts | One (1) Normally Open (N.O.); One (1) Normally Closed (N.C.) contacts |
| Metering | Amps, volts, kW, kWh, MW, MWH, elapsed time, power factor, and motor thermal capacity |
| Selectable Overload Trip Class | Trip Class 10, 15, or 20 |
| DV/DT Protection | 1000V/µs |
| Overvoltage Category | III |
| Mounting | Panel Mount |
| Brand | Allen Bradley |
