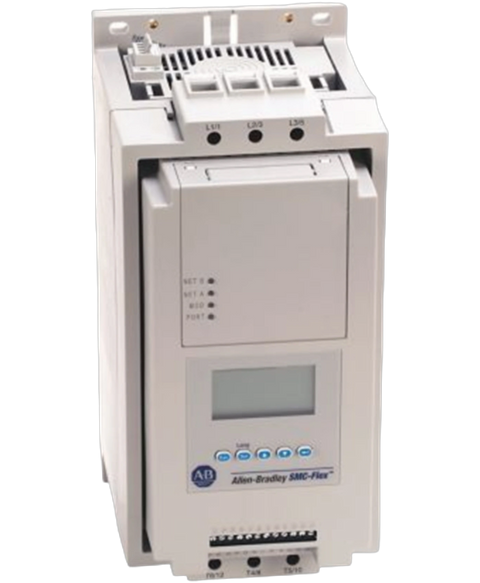

Allen Bradley 150-F108NBD
The Allen-Bradley 150-F108NBD is a SMC Flex Smart Motor Controller. This motor controller has a line Voltage of 200-460VAC, 3-Phase, 50 and 60 Hz and control Voltage of 100-240V AC (5-480 A units). It delivers maximum continuous output current of 108 Amperes and output power of 75 HP at 460VAC rated voltage with an open type enclosure. This motor controller has an integrated LCD backlit display which is used for programming and monitoring of the controller’s operation.
This Allen Bradley 150-F108NBD is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Softstarters range and is referenced internally as PartLogic SKU PL26805568002.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | SMC-Flex |
| Part Number | 150-F108NBD |
| UPC | 662073059912 |
| Weight | 33.56 lbs (15.22 kg) |
| Operating Modes | Soft Start, Full Voltage Start, Smart Motor Braking, Current Limit Start, Dual Ramp Start, Accu-Stop, Selectable Kickstart, Pump Start, Slow Speed with Braking, Coast-to-rest, Preset Slow Speed, Linear Speed Acceleration (Tachometer required), Soft Stop and Pump Stop |
| Bulletin Number | 150 |
| Control Voltage | 100…240V AC (5…480 A units) |
| Product Family | SMC Flex Smart Motor Controller |
| Line Voltage | 200…460V AC, 3-Phase, 50 and 60 Hz |
| Maximum output Current | 108 A |
| Maximum output Power | 75HP |
| Communications | One DPI provided for connection to optional human interface and one DPI provided for connection to communication |
| Auxiliary Contacts | Four fully programmable contacts as normal/up-to- speed/fault/alarm/network (N.O./N.C.), or external bypass (N.O. only) |
| Metering | Amps, volts, kW, kWh, MW, MWH, elapsed time, power factor, motor thermal capacity usage |
| Protection and Diagnostics | Power loss, line fault, voltage unbalance, excessive starts/hour, phase reversal, undervoltage, overvoltage, controller temp, stall, jam, open gate, overload, underload, communication fault. |
| Enclosure Type | Open Type Enclosure |
| Controller Rating | 108 A, 75 Horsepower(HP) at 460 VAC |
| Input Line Voltage | 200-460 VAC, 3-Phase, 50/60 Hz |
| Table Info | These specifications were compiled by Do Supply and only for Do Supply's use with our written consent. |
| Rated Voltage | 200 to 460 VAC |
| Brand | Allen Bradley |
