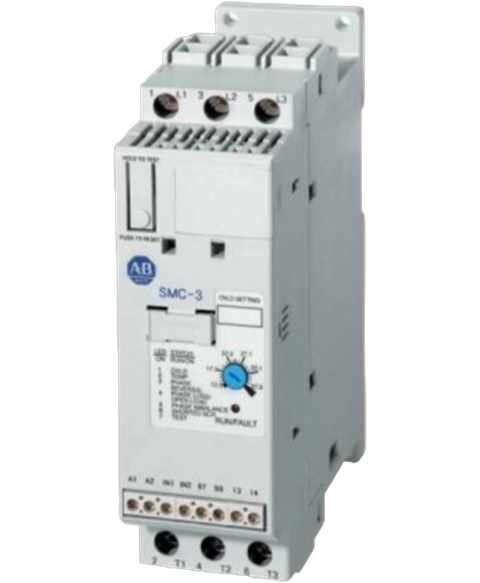

Allen Bradley 150-C9NBR
The 150-C9NBR is a Soft Starter device from Allen-Bradley’s SMC-3 Smart Motor Controller product family. This is a solid-state controller with a current rating of 9 Amperes, Open type enclosure, 200-460V AC, 3-Phase, 50,60 Hz input line voltage, and control voltage of 24 VAC , VDC. This controller is capable of Soft Start, Current Limit Start, Selectable Kickstart, Coast-to-rest, and Soft Stop control methods.
This Allen Bradley 150-C9NBR is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Softstarters range and is referenced internally as PartLogic SKU PL26805571839.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | SMC-3 |
| Part Number | 150-C9NBR |
| UPC | 611320640908 |
| Weight | 2.00 lbs (0.91 kg) |
| Control Voltage | 24 VAC / VDC |
| Enclosure Type | Open |
| Product Description | Smart Motor Controller (SMC) |
| Input Line Voltage | 200-460 VAC |
| Input frequency | 50 / 60 Hz |
| Output Current | 9:00 AM |
| Supported functions | Soft Start; Selectable kickstart; Current limit start; Cost-to-rest and Soft Stop. |
| Mounting | Panel Mount |
| Selectable Start Times | 2, 5, 10, 15, 20, 25, or 30 s |
| Selectable Initial Torque | 15%, 25%, 35%, and 65% of locked rotor torque |
| Selectable Current Limit | 150%, 250%, 350%, and 450% of full load current |
| Current Rating | 9 A |
| Bulletin Number | 150 |
| Rated Voltage | 200-460V AC |
| Input Line | 200-460V AC, 3-Phase, 50/60 HZ |
| Control Methods | Soft Start, Current Limit Start, Selectable Kickstart, Coast-to-rest and Soft Stop control methods |
| Soft start adjustments | 2, 5, 10, 20, 25, and 30 seconds |
| Wiring | 3-Wire |
| Initial Torque adjustments | 15%, 25%, 35%, and 65% of locked rotor torque |
| Compatibility | Delta Compatibility |
| Current Limit adjustments | 150%, 250%, 350%, and 450% of full load current |
| Selectable Kick-start adjustments | 0, 0.5, 1.0, or 1.5 s |
| Soft Stop | Off, 100%, 200%, or 300% of the start time setting when wired |
| Line Voltage | 200-460V AC, 3-Phase |
| Line voltage frequency | 50-60 Hz |
| Enclosure rating | Open type |
| Brand | Allen Bradley |
