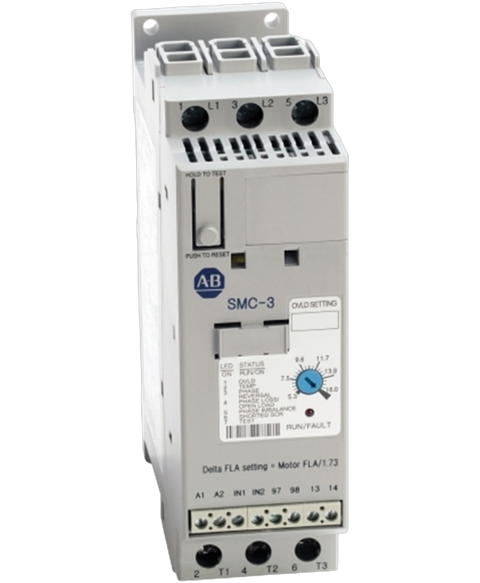

Allen Bradley 150-C85NBD
The Allen-Bradley 150-C85NBD is a SMC-3 Smart Motor Controller. This motor controller has a line Voltage of 200-480VAC and control Voltage of 100-240VAC. It delivers maximum continuous current of 85.0 A and output power ratings such as 25 Hp for 200VAC; 30 HP for 230VAC and 60 HP for 460 VAC when operated as line controller. When operated as Delta controller, the maximum continuous output current is 147.0 A, maximum output power of 40 Hp for 200VAC; 50 Hp for 230VAC and 100 Hp for 460.
This Allen Bradley 150-C85NBD is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Softstarters range and is referenced internally as PartLogic SKU PL26801434871.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | SMC-3 |
| Part Number | 150-C85NBD |
| UPC | 781180036774 |
| Weight | 6.75 lbs (3.06 kg) |
| Control Voltage | 100-240VAC |
| Enclosure Type | Open |
| Product Family | SMC-3 Smart Motor Controller |
| Bulletin Number | 150 |
| Operating Modes | Soft Start Current Limit Start Selectable Kickstart Coast-to-rest Soft Stop |
| Line Voltage | 240-480VAC |
| Maximum output Current, Line Controller | 85.0 A |
| Maximum output power, Line Controller | 40 HP @ 200VAC 50 HP @ 230VAC 100 HP @ 460VAC |
| Maximum output Current, Delta Controller | 147.0 A |
| Maximum output power, Delta Controller | 25 HP @ 200VAC 30HP @ 230VAC 60 HP @ 460VAC |
| Auxilliary Contact Ratings | 120 / 240VAC |
| Trip Rating | Motor FLA/ 1.73 |
| Module Type | Smart Motor Controller |
| Current Rating | 85 A |
| Rated Voltage | 200 to 460 Volts AC |
| Input Line | 200 to 460 Volts AC, 3-Phase, 50/60 Hertz |
| Wiring | 3-Wire |
| Compatibility | Delta Compatibility |
| Power Dissipation | 82 Watts |
| Brand | Allen Bradley |
