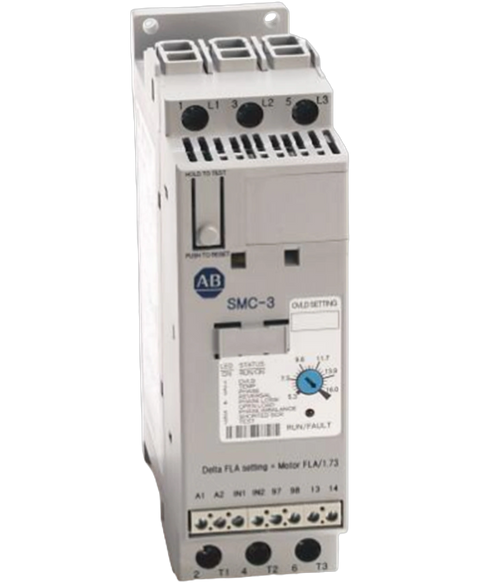

Allen Bradley 150-C108NBD
The Allen-Bradley 150-C108NBR is a SMC-3 Smart Motor Controller. This motor controller has a line Voltage of 200-460VAC, 3-Phase, 50 and 60 Hz and control Voltage of 24VDC , 24VAC. This motor controller may be used with line-connected and Delta-connected motors. It has a maximum output current of 108 Amperes with Open type enclosure. This controller is capable of Soft Start, Kickstart, Current Limiting, Coast to stop, and Soft-stop.
This Allen Bradley 150-C108NBD is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Softstarters range and is referenced internally as PartLogic SKU PL26931844649.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Smart Motor Controller |
| Product Line | SMC-3 |
| Part Number | 150-C108NBD |
| UPC | 781180871016 |
| Weight | 31.00 lbs (14.06 kg) |
| Control Voltage | 24V AC / 24VDC |
| Current Rating | 108 Amperes |
| Product Family | SMC-3 Smart Motor Controller |
| Bulletin Number | 150 |
| Operating Modes | Soft Start, Kickstart, Current Limiting, Coast to stop, and Soft-stop. |
| Line Voltage | 200…460V AC, 3-Phase, 50 and 60 Hz |
| Auxiliary Contacts | One (1) Normally Open contact for OVLD / FLT; One (1) Normally Open contact for (Normal/Up-to- Speed |
| Applications | compressors, chillers, pumps, conveyors, and crushers |
| Standard features | Selectable Start Times; Selectable Initial Torque; Selectable Current Limit; Selectable Kick Start — 450% FLA; Selectable Soft Stop; Selectable Overload Trip Class |
| Enclosure Type | Open |
| Rated Voltage | 200 to 460 Volts AC |
| Input Line | 200 to 460 Volts AC, 3-Phase, 50/60 HZ |
| Wiring | 3-Wire |
| Compatibility | Delta Compatibility |
| Voltage Insulation | 600 Volts AC |
| Brand | Allen Bradley |
