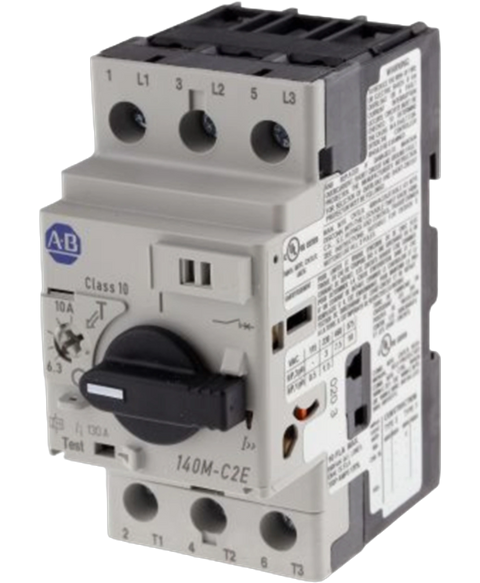

Allen Bradley 140M-C2E-C10
The 140M-C2E-C10 model is a motor protection circuit breaker by Allen Bradley, designed to shield motors up to a rated current of 10.0 A. This device features a 3-pole configuration and incorporates a standard trip unit classified as T,M.
This Allen Bradley 140M-C2E-C10 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical components > Motor protectors range and is referenced internally as PartLogic SKU PL26801464089.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | ALLEN BRADLEY |
| Manufacturer Part Number | 140M-C2E-C10 |
| Device type | Manual motor protection circuit breaker |
| Poles | 3 |
| Frame size | C |
| Current setting range | 6.3…10 A |
| Voltage rating | 600 V AC max |
| Utilization category | AC-3 per IEC 60947-4-1 |
| Trip class | 10 |
| Protection type | Adjustable thermal / fixed magnetic (≈13 x In) |
| Terminal type | Screw connection |
| Degree of protection | IP2X |
| Width | 45 mm |
| Height | 90 mm |
| Depth | 74.5 mm |
| Mounting | DIN rail |
| Rated frequency | 50/60 Hz |
| Overvoltage category / Uimp | 6 kV / Category III |
| Short-circuit capability (IEC) | Icu/Ics 50 kA @ 500 V |
| Short-circuit capability (UL) | Up to 65 kA @ 480Y/277 V (Type E/F, manual motor controller) |
| HP rating | 7.5 HP @ 460 V, 3‑phase |
| Switching frequency, max | 25 ops/h |
| Phase failure sensitive | Yes |
| Moisture and climate tests | Per IEC 60068; pollution degree 3 |
| Vibration resistance | 5 G (IEC 60068-2-6) |
| Shock resistance | 30 G, 11 ms (IEC 60068-2-27) |
