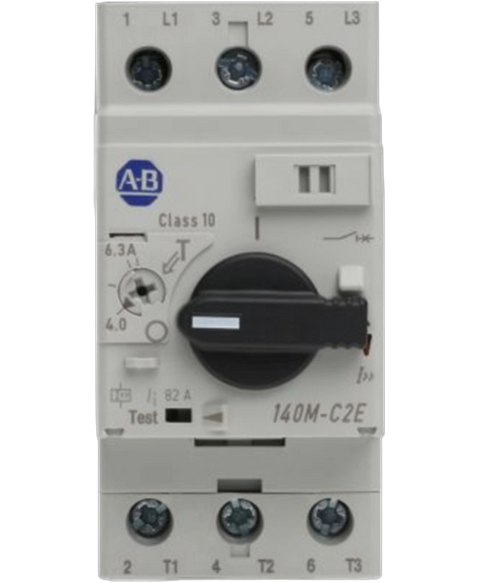

Allen Bradley 140M-C2E-B63
The 140M-C2E-B63 is a motor protection circuit breaker from Allen-Bradley. This electrical device is mainly used for branch circuit disconnect, Magnetic protection, Overload protection, and manual switching. This device is a C-Frame circuit breaker with a rated operational current of 6.3 Amperes and an adjustment range of 4.0 - 6.3 Amperes while the magnetic trip current is 82 Amperes.
This Allen Bradley 140M-C2E-B63 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical components > Motor protectors range and is referenced internally as PartLogic SKU PL26801446686.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Circuit Breaker |
| Product Line | 140M Circuit Breakers |
| Part Number | 140M-C2E-B63 |
| UPC | 662468964357 |
| Weight | 0.75 lbs (0.34 kg) |
| Product Family | 140 Motor Protection circuit breakers |
| Voltage Rating | 600 Volts AC |
| Rated operational current | 6.3 Amperes |
| Operating Current | 6.3 Amps |
| Motor current adjustment range | 4.0-6.3 Amperes |
| Adjustable Motor Current | 4 to 6.3 Amps |
| Maximum short circuit current | 100 kA @ 400V; 65 kA at 480 V (group motor) |
| Magnetic Trip Current | 82 Amperes |
| Frame | C |
| Motor Protection Type | Standard |
| Breaking capacity | Normal break |
| Mounting | DIN Rail |
| Protection type | Adj. thermal / Fixed mag |
| Applications | Branch circuit disconnect; Magnetic protection; Overload protection; Manual switching |
| No. of Poles | 3 Poles |
| Standard compliance | CSA22.2, No.14; UL508 (Group Installation); IEC60947-2; CE; CCC |
| Accessories | External Rotary Operator; Auxiliary Contacts; Trip Indication Contacts |
| Brand | Allen Bradley |
