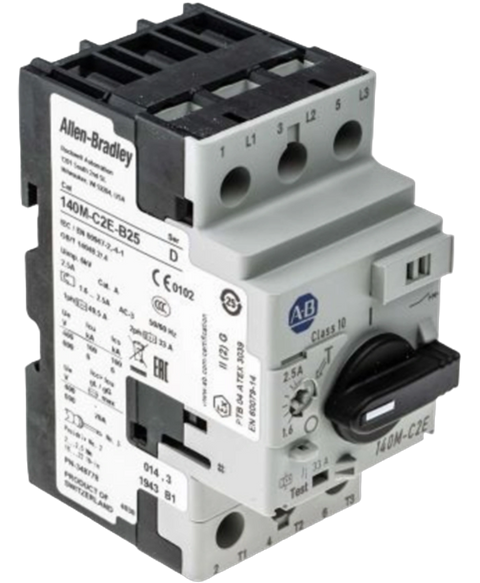

Allen Bradley 140M-C2E-B25
The 140M-C2E-B25 from Allen Bradley is a motor protection circuit breaker specifically designed for electrical systems. Rated for 2.5 A and configured with three poles, it offers adjustable thermal trip settings for precise protection.
This Allen Bradley 140M-C2E-B25 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical components > Motor protectors range and is referenced internally as PartLogic SKU PL26801431210.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer Part Number | 140M-C2E-B25 |
| Product Type | Motor protection circuit breaker |
| Poles | 3 |
| Current Setting Range | 1.6–2.5 A |
| Rated Operational Current (Ie) per IEC | 2.5 A |
| Magnetic Trip Current | 33 A (fixed ~13× Ie) |
| Rated Operating Voltage, max | 690 V per IEC |
| Rated Frequency | 50/60 Hz |
| AC‑3 Power Rating | 0.75 kW @ 400 V; 1.8 kW @ 690 V |
| Short‑Circuit Coordination (UL 508) | Up to 65 kA @ 480Y/277 V |
| Breaking Capacity (IEC) | Icu/Ics 6 kA @ 690 V |
| Trip Class | 10 |
| Degree of Protection | IP2X |
| Terminal Type | Screw connection |
| Operator Type | Turn button |
| Dimensions (W x H x D) | 45 x 90 x 74.5 mm |
| Mounting | DIN rail |
| Construction | Built‑in device, fixed technique |
| Factory Options | No auxiliary or trip contacts |
| Contactor Coordination | Type 2 with 100‑C16 @ 600 V |
| Frame Size | C, 32 A |
| Mechanical Life | 100000 operations |
| Switching Frequency, max | 25 operations/hour |
