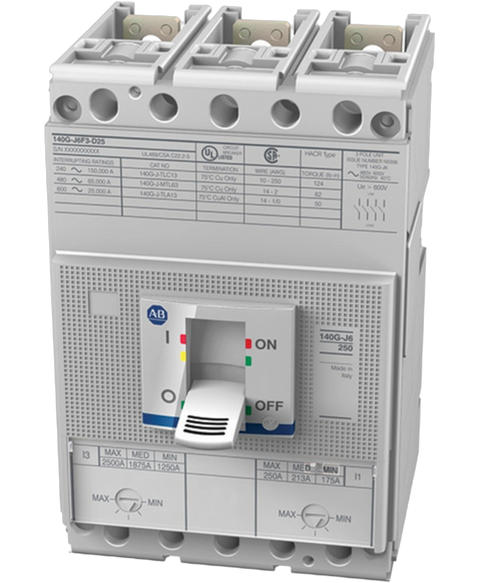

Allen Bradley 140G-J6F3-D25
The 140G-J6F3-D25 molded case circuit breaker is an Allen-Bradley Bulletin 140G series circuit breaker with 3 poles and a Size J frame. It supports thermal and magnetic tripping, it supports adjustable trip ratings, and it supports mounting on a DIN Rail in any required position. The 140G-J6F3-D25 circuit breaker has a thermal trip range from 175 to 250 Amps and a magnetic trip range from 1250 to 2500 Amps. If it needs to be protected from dust and water or other liquids, it can be installed inside a cabinet. The ambient operating temperature range supported by the 140G-J6F3-D25 circuit breaker is from 0 to 40 degrees Celsius.
This Allen Bradley 140G-J6F3-D25 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL26960450820.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Molded Case Circuit Breaker |
| Product Line | 140G MCB |
| Part Number | 140G-J6F3-D25 |
| UPC | 885630568676 |
| Weight | 5.00 lbs (2.27 kg) |
| Frame | J |
| Amps | 250 |
| Interrupting Rating | 65 kA |
| Protection Type | Adjust Thermal/ Adjust Magnetic |
| Current Range | 250 A |
| Rated Insulation Voltage | 1000V |
| Rated Impulse Withstand Voltage | 8 kV |
| Mechanical Life | 240 Operations/hr. |
| Electrical Life | 120 Operations/ hr. |
| Brand | Allen Bradley |
