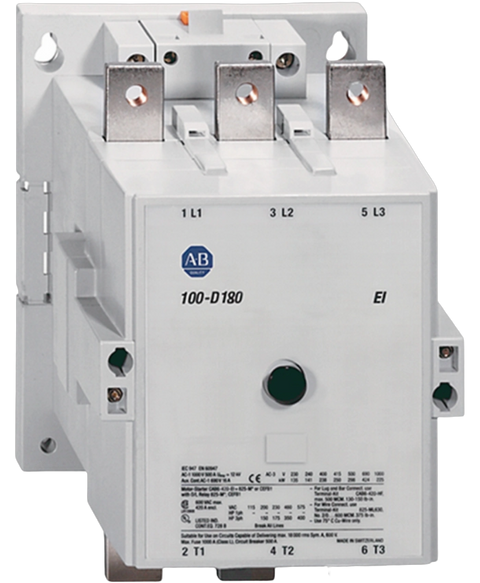

Allen Bradley 100-D180D11
The 100-D180D11 Bulletin 100-D IEC magnetic contactors from Allen-Bradley. This electrical device is a non-reversing, 3-Phase and 3-Pole magnetic contactor with 110 VAC coil voltage @ 50 Hz and 120 VAC @ 60 Hz. It has a current rating of 180 Amperes with One (1) Normally Open (N.O.) and One (1) Normally Closed (N.C.) contacts. At 50 Hz voltage, it has AC switching motor ratings of 110 kilowatts at 200 Volts, 55 kilowatts at 230 Volts, 90 kilowatts at 400 Volts, 90 kilowatts at 415 Volts, 110 kilowatts at 500 Volts, 90 kilowatts at 690 Volts, and 132 kilowatts at 1000 Volts; At 60 Hz voltage, it has AC motor switching frequency of 50 Hp at 230 Volts, 60 Hp at 460 Volts and 125 Hp at 575 Volts.
This Allen Bradley 100-D180D11 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical components > Contactors range and is referenced internally as PartLogic SKU PL26805560017.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Contactor |
| Product Line | 100 Contactors |
| Part Number | 100-D180D11 |
| UPC | 781180029721 |
| Weight | 8.56 lbs (3.88 kg) |
| Product Bulletin | 100-D Contactors |
| Product Family | Motor Control |
| Product Category | IEC Contactor |
| Poles | 3 |
| No. of Poles | 3-poles |
| Current Rating | 180 Amps |
| Rated Current Rating | 180 Amps @ 400 VAC (60 degrees C) 250 Amps @ 600 VAC (40 degrees C) |
| Coil type | Conventional |
| NC Contacts | 1 |
| Maximum Current | 860 Amps |
| Coil voltage | 110 VAC @ 50 Hz; 120 VAC @ 60 Hz |
| NO Contacts | 1 |
| Auxiliary contacts | One (1) Normally Open (N.O.); One (1) Normally Closed (N.C.) |
| Operating current, min | 180 Amperes |
| Type | Non-reversing |
| Contactor Type | Non-reversing |
| AC motor switching rating, 50 Hz | 110 kilowatts at 200 Volts; 55 kilowatts at 230 Volts; 90 kilowatts at 400 Volts; 90 kilowatts at 415 Volts; 110 kilowatts at 500 Volts; 90 kilowatts at 690 Volts; 132 kilowatts at 1000 Volts |
| Isolation Voltage | 1000 Volts |
| Coil | Conventional coil |
| AC motor switching rating, 60 Hz voltage | 50 Hp at 230 Volts; 60 Hp at 460 Volts; 125 Hp at 575 Volts |
| Impulse Voltage | 12 kilovolts |
| Mounting | Panel mounting only |
| Storage Temperature | -40 to 80 degrees Celsius |
| Power Ratings @ 50 Hz | 55 kW @ 230 VAC; 90 kW @ 400VAC and 415VAC; 110 kW @ 500 VAC; 90 kW @ 690 VAC; 132 kW @ 1000VAC; 110 kW @ 200VAC |
| Compatible components | Bulletin 193 |
| Operating Temperature | -25 to 60 degrees Celsius |
| Power Ratings @ 60 Hz | 50 Hp @ 230VAC; 60 Hp @ 460 VAC; 125 Hp @ 575 VAC |
| Product lifecycle | Discontinued |
| Brand | Allen Bradley |
