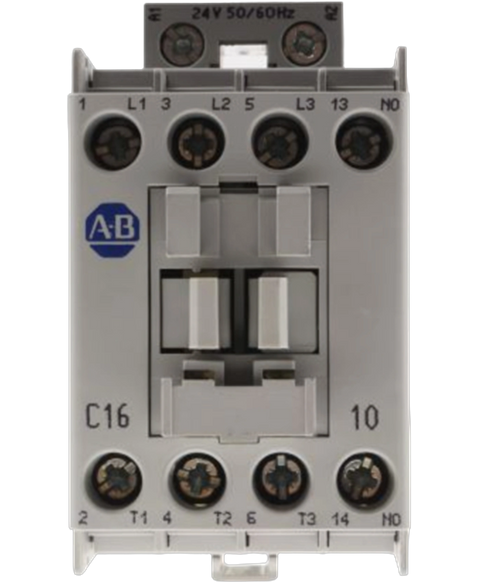

Allen Bradley 100-C16KJ10
Contactor, non reversing, 16A, 600VAC max, 3-phase, 3-pole, coil 24v 50,60Hz, ac, 3 normally open poles, 24v ac 50,60Hz, 1 NO contacts & 0 NC contacts, line side coil termination, screw terminals, IEC, open style, DIN rail mountable
This Allen Bradley 100-C16KJ10 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical components > Contactors range and is referenced internally as PartLogic SKU PL26805529567.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Contact Current Rating | 16 A |
| Depth | 86.5 mm |
| Length | 81 mm |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -25 °C |
| Number of Poles | 3 |
| Power Rating | 7.5 kW |
| RoHS | Non-Compliant |
| Termination | Screw |
| Throw Configuration | 3P |
| Width | 45 mm |
