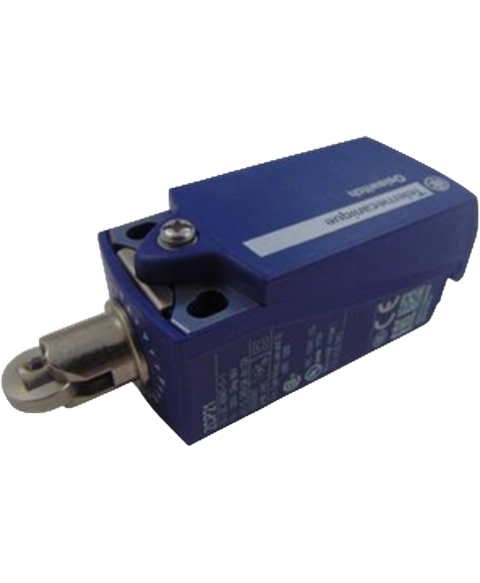

Telemecanique XCK-P2145G11
Limit switch, spst, 3A, 240VAC; limit switch actuator:roller lever; contact configuration:spst-NO, spst-NC; contact current ac max:3A; contact voltage ac max:240v; operating force max:0.1n-m; product range:osisense xc series rohs compliant: yes
This Telemecanique XCK-P2145G11 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Limit switches range and is referenced internally as PartLogic SKU PL26801403025.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, CSA, UL |
| Body Material | Plastic |
| Current Rating | 10 A |
| Depth | 30 mm |
| Electrical Life | 5 Mcycles |
| Height | 65 mm |
| Housing Material | Plastic |
| Length | 31 mm |
| Max Operating Temperature | 70 °C |
| Max Voltage Rating (AC) | 240 V |
| Max Voltage Rating (DC) | 250 V |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -25 °C |
| Mount | Cable, Screw |
| Operating Force | 100 mN |
| Orientation | Right Angle |
| Packaging | Bulk |
| Ratings | IP66 |
| REACH SVHC | No |
| RoHS | Compliant |
| Termination | Screw |
| Throw Configuration | DP, DPST, SPDT |
| Voltage Rating (AC) | 240 V |
| Voltage Rating (DC) | 250 V |
| Width | 31 mm |
