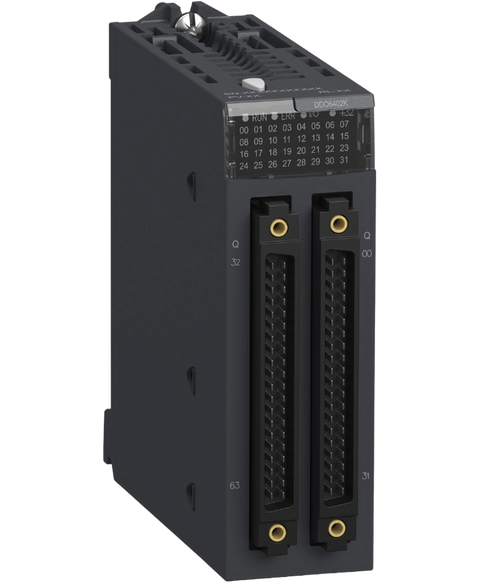

Schneider Electric BMXDDO6402K
The BMXDDO6402K from Schneider Electric is a discrete output module within the Modicon series. Designed for reliable performance, this module operates at a voltage of 24VDC and supports a positive output logic. It has a maximum current capacity of 6.4A across the module, with each discrete output rated at 0.1A.
This Schneider Electric BMXDDO6402K is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output range and is referenced internally as PartLogic SKU PL26805621034.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Product or component type | Discrete output module |
| Discrete output number | 64 conforming to IEC 61131-2 |
| Discrete output type | Solid state |
| Discrete output logic | Positive |
| Discrete output voltage | 24 V 19...30 V DC |
| Discrete output current | 0.1 A |
| Current per channel | 0.125 A |
| Maximum current per module | 6.4 A |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 6.85 W |
| Response time on output | 1.2 ms |
| Paralleling of outputs | Yes : 3 maximum |
| Typical current consumption | 160 mA at 3.3 V DC |
| MTBF reliability | 150000 H |
| Protection type | External fuse reverse polarity protection | short-circuit protection | overload protection | overvoltage protection |
| Output overload protection | With current limiter | With electronic circuit breaker 0.125 A < Id < 0.185 A |
| Output overvoltage protection | With transil diode |
| Output short-circuit protection | With 2 A external fuse |
| Reverse polarity protection | Reverse mounted diode |
| Voltage detection threshold | < 14 V DC preactuator fault | > 18 V DC preactuator at state 0 |
| Maximum tungsten load | 1.2 W |
| Switching frequency | 0.5/LI² Hz |
| Maximum overload time | 15 ms |
| Load impedance ohmic | >= 220 Ohm |
| Status LED | 1 LED (green) +32 channels indicator | 1 LED (green) module operating (RUN) | 1 LED per channel (green) channel diagnostic | 1 LED (red) module error (ERR) | 1 LED (red) module I/O |
| Net weight | 0.15 kg |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, output/ground | 1500 V AC at 50/60 Hz 1 minute, output/internal logic | 500 V DC 1 minute, between group of channels |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | Standard version |
| Operating altitude | 0...2000 m | 2000...5000 m with derating factor |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.800 cm |
| Package 1 Width | 11.300 cm |
| Package 1 Length | 11.300 cm |
| Package 1 Weight | 180.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.085 kg |
